COP 2 HV Metering Panel (Extra Wide Extra Tall Remote)

COP 2 HV Metering Panel (Extra Wide Extra Tall Remote)

Regular price Excl VAT £817.00
Inc VAT £980.40

COP 2 - Code of Practice 2 HV Metering Panel - Manufactured to ENW Specification.

Note: This metering panel is not supplied with CTs (current transformers) and is supplied without appropriate COP 2 meters, so that these can be sourced and fitted according to the DNO operating in the area of installation.

The pre-wired metering panel comes ready for fitting a COP 2 meter on the front of the metering panel enclosure.

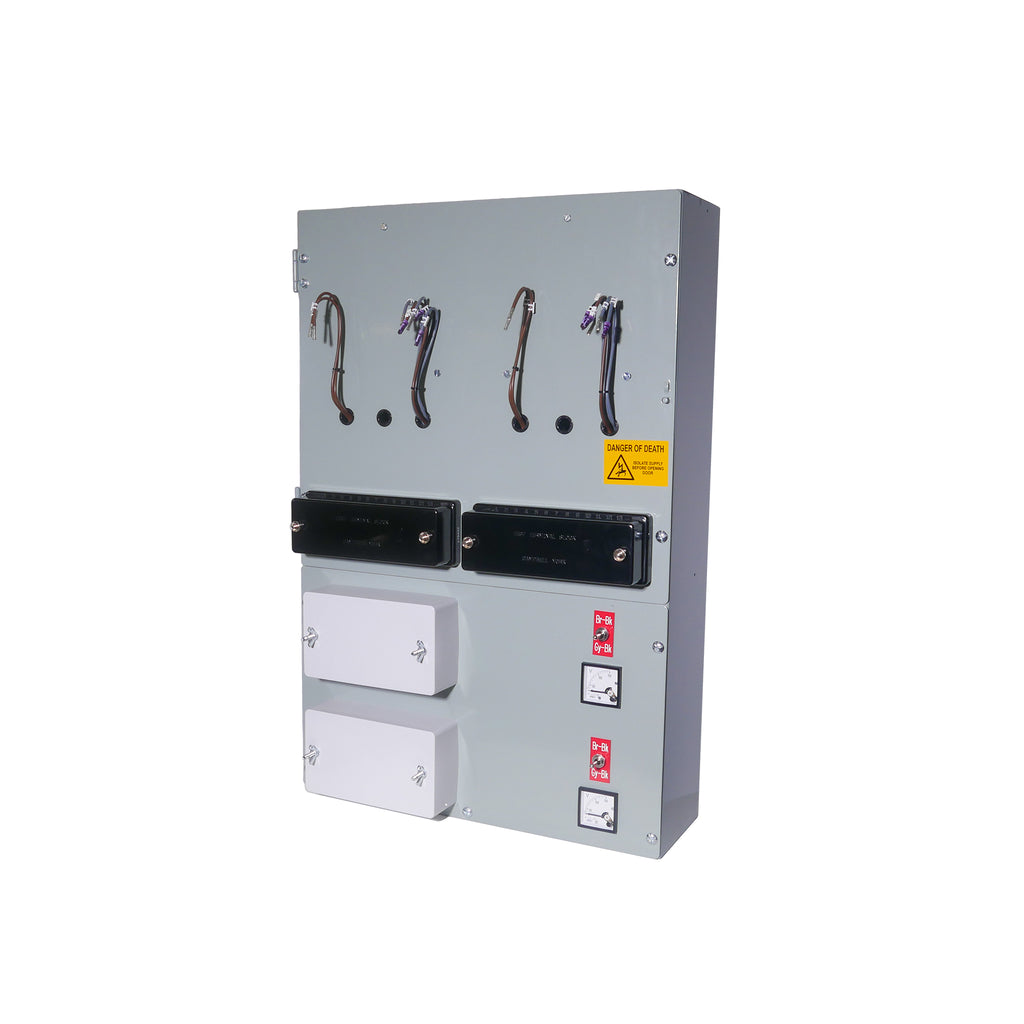

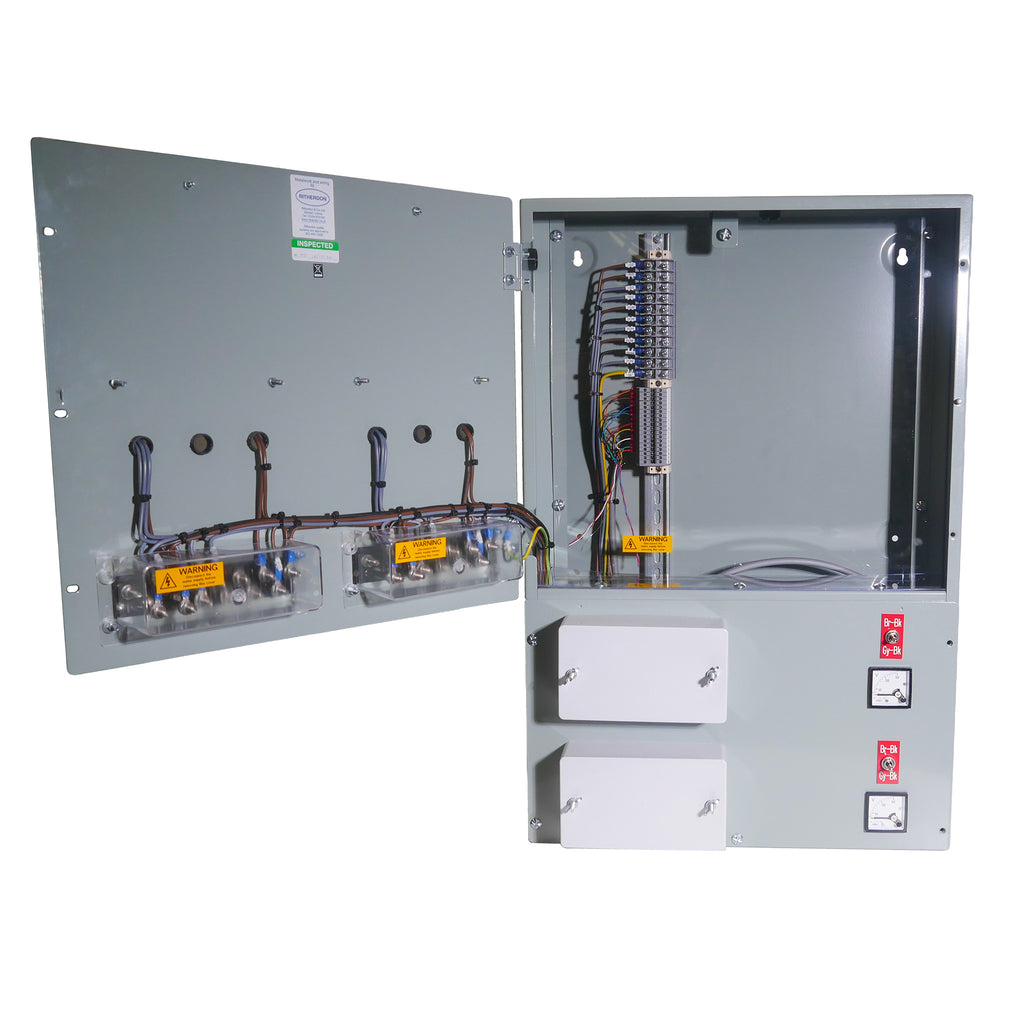

The COP 2 HV metering panel consists of a metal enclosure to suitability protect the metering point installation, current transformers and voltage transformers necessary for precise metering and remote interrogation of COP 2 meters.

Enclosure made from stainless steel, powder coated light grey.

  • Dimensions: Height 750mm,  Width 500mm  and Depth 150mm - Part number 300192
  • Manufactured to comply with Code of Practice 2
  • Metering enclosure made out of stainless steel, powder coated light grey
  • Wall mounted, Hinges to the left
  • Fits two meters
  • Two test terminal blocks

Manufactured to ENW Specification.

We are manufacturers and not electricians, please seek advice from your DNO and your connection provider. The connection provider may be your DNO (Distribution Network Operator) or an ICP (Independent Connection Provider).

If you require a new connection and are unsure of what you need please contact your DNO or seek advice from a Lloyd's Registered certified Independent Connection Provider.

Regardless of who takes care of your connection, you will need to comply with all requirements to gain access to the energy network which is managed by your DNO.
