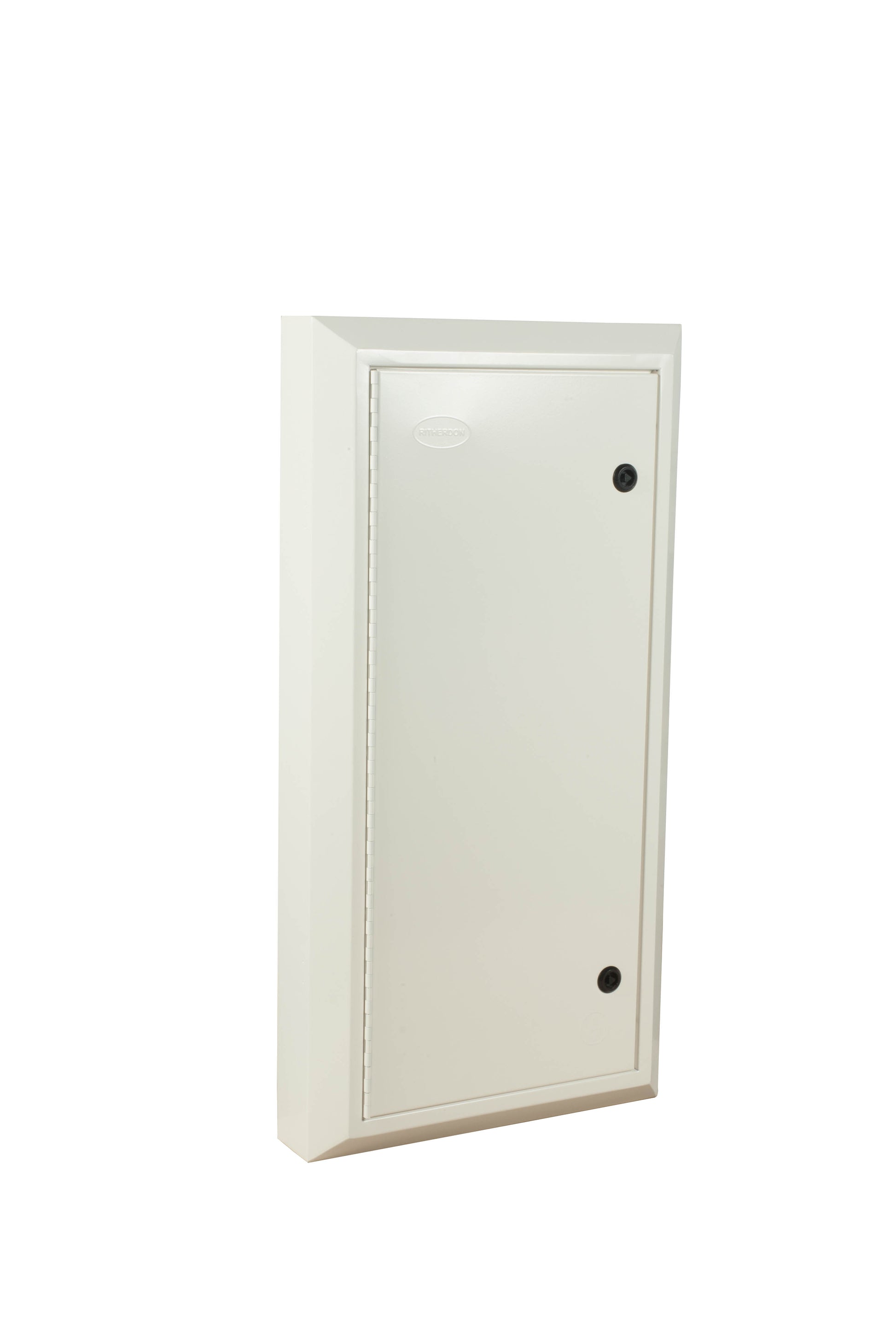

R27 E Replacement Electric Door and Frame
Inc VAT £230.57
The Ritherdon R27 replacement door and frame is designed for use on steel electricity meter back boxes of either “Mantel” or “Clifton” designs, as commonly used in high and medium rise social housing.
Unsure of how to measure your damaged meter box? See how to measure here or click here to view our selection guide.
Product Documentation:
Product Features:
- Replaces existing damaged frames, fits onto back boxes.
- Electricity warning symbol embossed on the door.
- Left-hand opening, stainless steel piano hinge.
- All units fitted with two cam locks and supplied with a triangular plastic key.
- Powder coated, 1.2 mm Stainless Steel.
- Available in RAL 9010 Satin White.
How to install:
The R27E is designed for quick and easy installation on to an existing back box, which is approximately 400 mm wide x 795 mm high.
The R27E is internally fixed and retrofits to the meter back box through the use of four fixing tabs with slots in the centre, two on either side of the inside of the back of the frame. These fixing tabs slot onto threaded studs present on the inside of the back box and are fixed in place using nuts. No need to disconnect the meter or drill inside the box – safer installation in unskilled hands.
Product Data:
| Product Code |
Product Dimensions (h x w x d, mm) |
Fixing Tabs (vs* x hs, mm) |
Weight (kg) |
| R27E | 800 x 398 x 75 | 382 x 398 | 7.5 |
*Vertical separation is measured between slot centres on the fixing tabs.
**Please note that to fix over your meter box, the threaded studs in the back box must have the same vertical and horizontal separation as shown for the fixing tabs in the table above.
