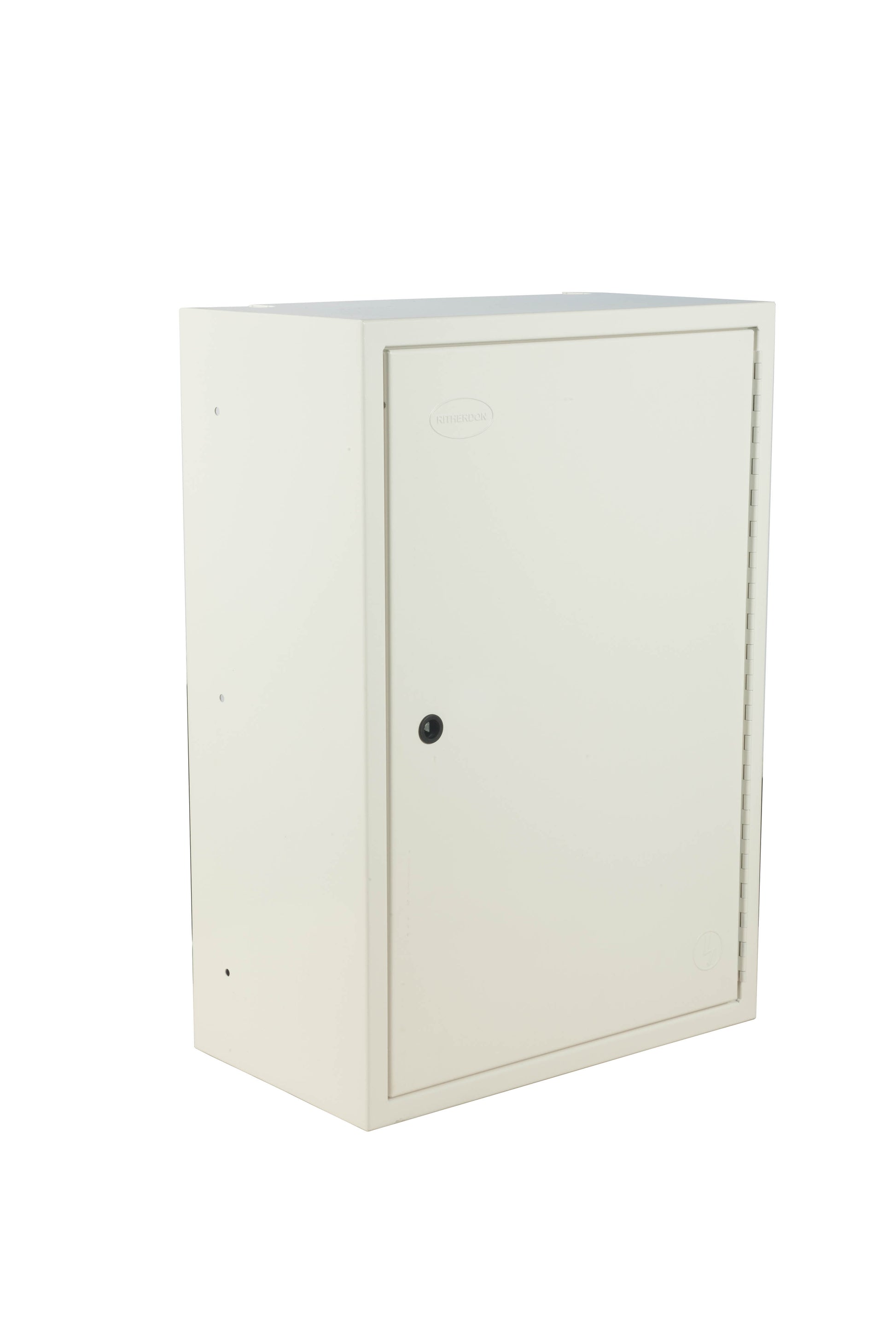

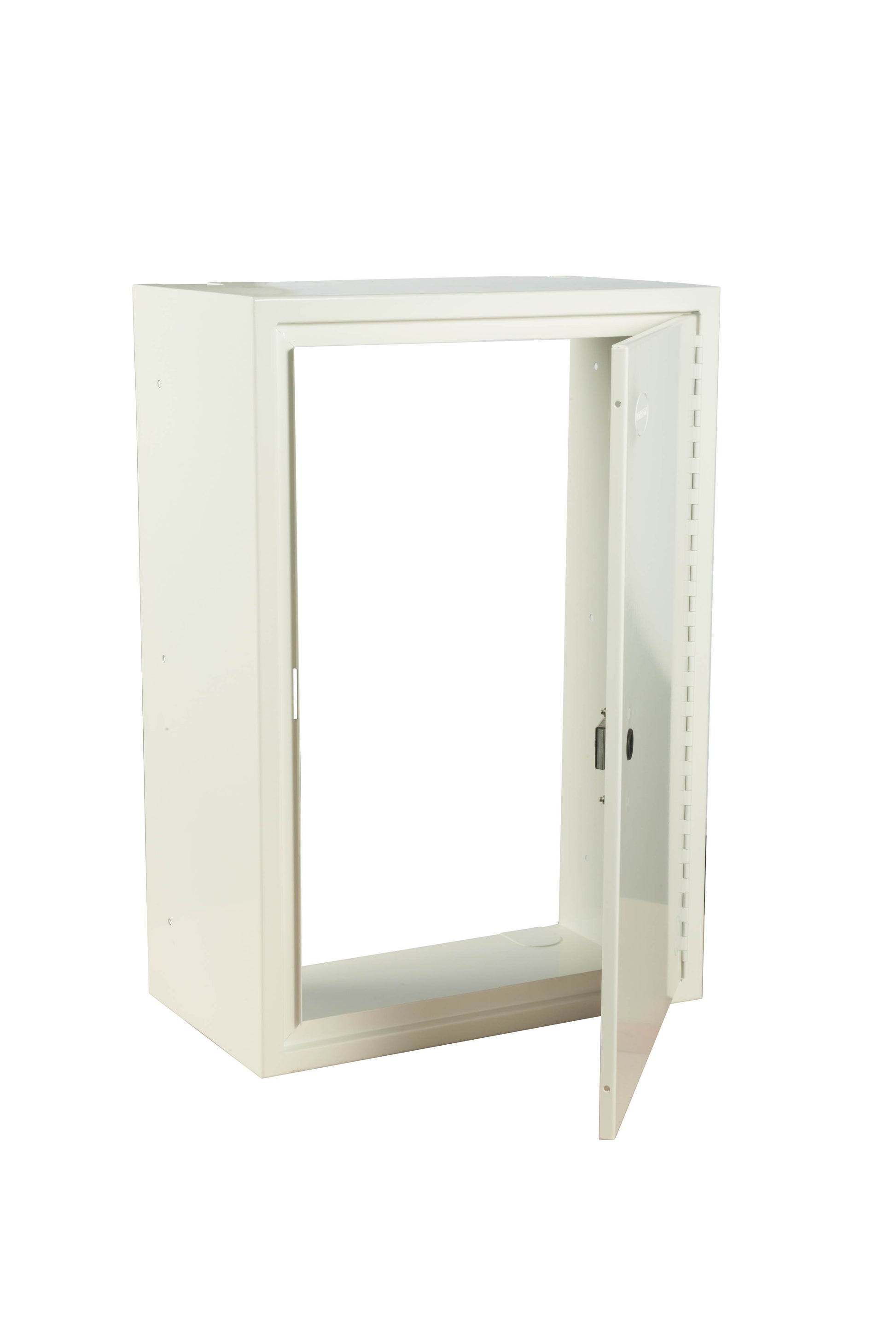

R26 E Replacement Electric Door and Body
Inc VAT £176.94
The R26 door and body is designed to repair a surface mounted GRP electricity meter housing. Manufactured from Stainless Steel, with a protective, white powder-coated finish, the R26 is intended to provide a long service life with the minimum of maintenance.
Unsure of how to measure your damaged meter box? See how to measure here or click here to view our selection guide.
Product Documentation:
Product Features:
- Covers damaged meter boxes.
- Electricity warning symbol embossed on the door.
- Right-hand opening, stainless steel piano hinge.
- Unit can be installed upside down for left-hand opening if required.
- All units fitted with slam lock and supplied with a triangular plastic key.
- Option for a keyed cam lock, just add a keyed lock to your cart at checkout.
- Powder coated, 1.2 mm Stainless Steel.
- Available in RAL 9010 Satin White.
- Two cable knock-outs on top and bottom to allow for variable incoming cables and through fed cables.
How to install:
The R26E is externally fixed and retrofits to the surface mounted GRP meter boxes through the use of three fixing points on either side of the back of the frame. These fixing points are used with the screws and two fixing plates provided to secure the R26E to the GRP box. No need to disconnect the meter – safer installation in unskilled hands.
Product Data:
| Product Code |
Product Dimensions (h x w x d, mm) |
Minimum Box Dimensions* (h x w x d, mm) |
Weight (kg) |
| R26E | 605 x 415 x 240 | 505 x 370 x 150 | 8 |
*Please note that to fix over your meter box, the height, width and depth must be in between the product dimensions and the minimum box dimensions stated above.
