BT Terminal Interface Pillar
Inc VAT £192.56

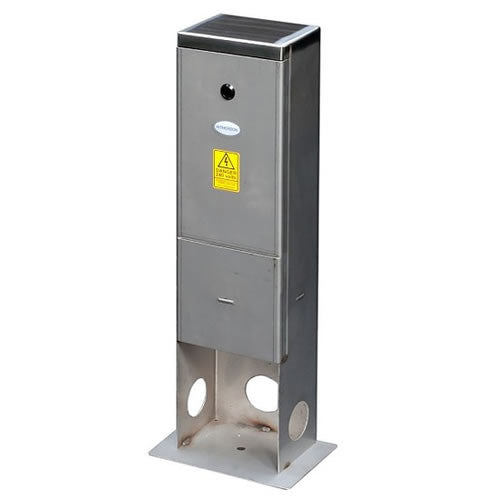

The Ritherdon BT terminal interface pillar is designed for housing remote monitoring equipment safely away from the signal controller. It is an ideal solution to allow telecommunications engineers to test their equipment without entering the signal controller cabinet. Two different heights of pillar are available.
To ensure a long service life the complete unit is manufactured from 2.0 mm thick stainless steel with a powder coated finish.
Click here to see a table with dimensions of all our cabinet and feeder pillar products.
Product Documentation:
- Data Sheet
- Instruction Sheet
- BT Pillar Small - Technical Drawing
- BT Pillar Large - Technical Drawing
Material Options
- 4003 Grade: Suitable for inland locations
- 304 Grade: Suitable for inland & coastal (<1 mile from coastline)
- 316 Grade: Suitable for coastline locations
See here for more detail
Colour Options
- RAL 9005 Black Gloss
- BS4800 14C40 Dark Green Gloss
- BS381C 631 Light Grey Gloss
- BS381C 632 Dark Grey Gloss
- Natural Finish* (304 & 316 Grades only)
- Anti Graffiti Options available on request.
*To order 304 Grade Powder Coated, select 304 Natural and state colour in 'add a note to your order'.
Lock Options
- Tri-key cam-lock (standard)
- Key Operated Lock option - To upgrade to a keyed lock you must add 1 keyed lock to your cart.
Product Data
| Pillar |
Dimensions (h x w x d, mm) |
Backboard (h x w, mm) |
Working Depth (mm) |
Working Height (mm) |
Weight (kg) |
| BT PIL SM | 802 x 204 x 157 | 350 x 180 |
130 |
456 |
12 |
| BT PIL LRG | 952 x 204 x 157 | 500 x 180 |
130 |
606 |
14 |
Further Information
- Feeder pillar comes root mounted. To ensure installation at the optimum depth a suggested ground level is marked on the outer faces of the pillar.
- Access for cable ducting is provided through the lower front section of the pillar and duct apertures on the sides and back of the root. An earth cable is provided for bonding the door to the body, with two M6 studs complete with nuts and washers.
- All pillars are supplied with a full-width 12mm external grade plywood backboard for the fitting of electrical termination equipment.
Still don't know whether this unit is suitable for you? Please see this guide, which includes a table with dimensions of all our cabinet and feeder pillar products.
