R300 Feeder Pillar Lift-off Door
Inc VAT £184.67

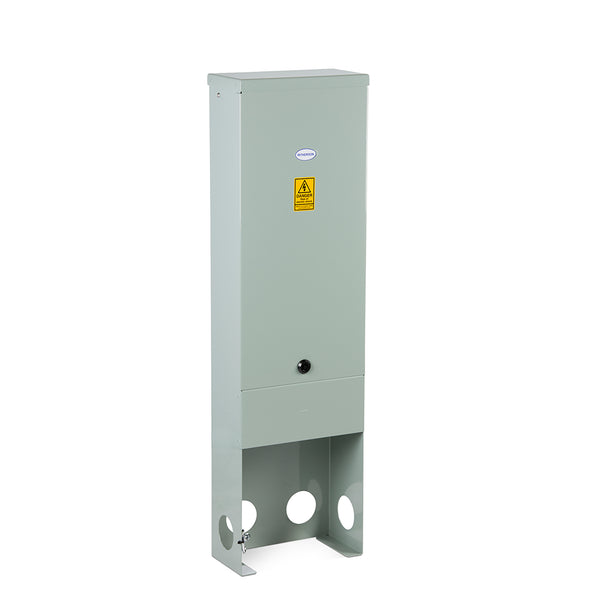

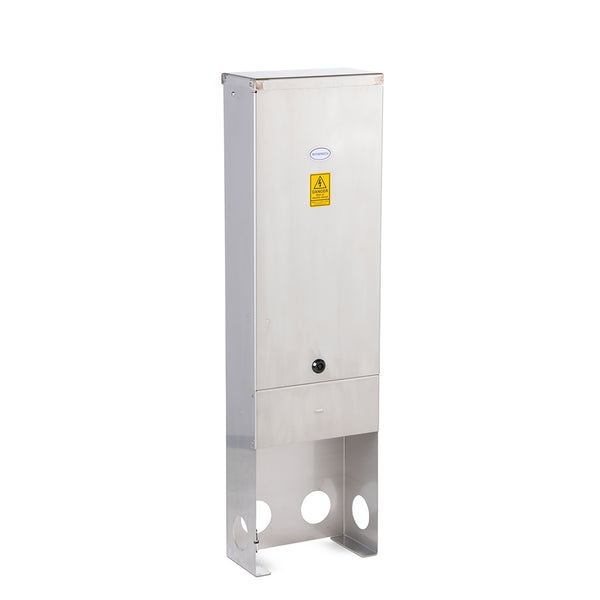

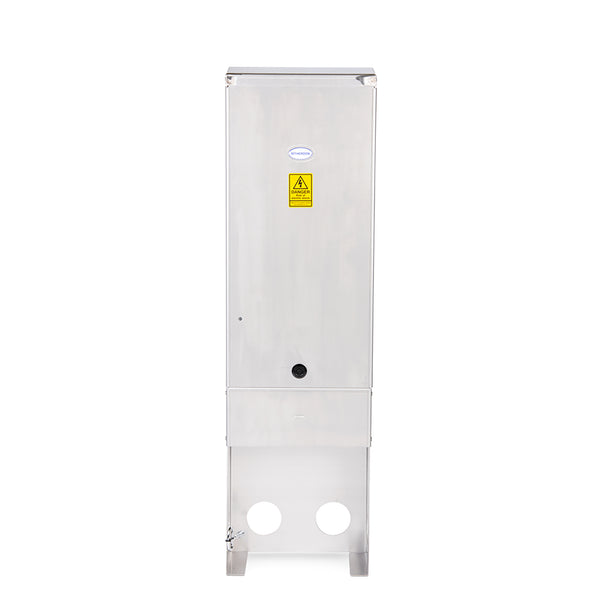

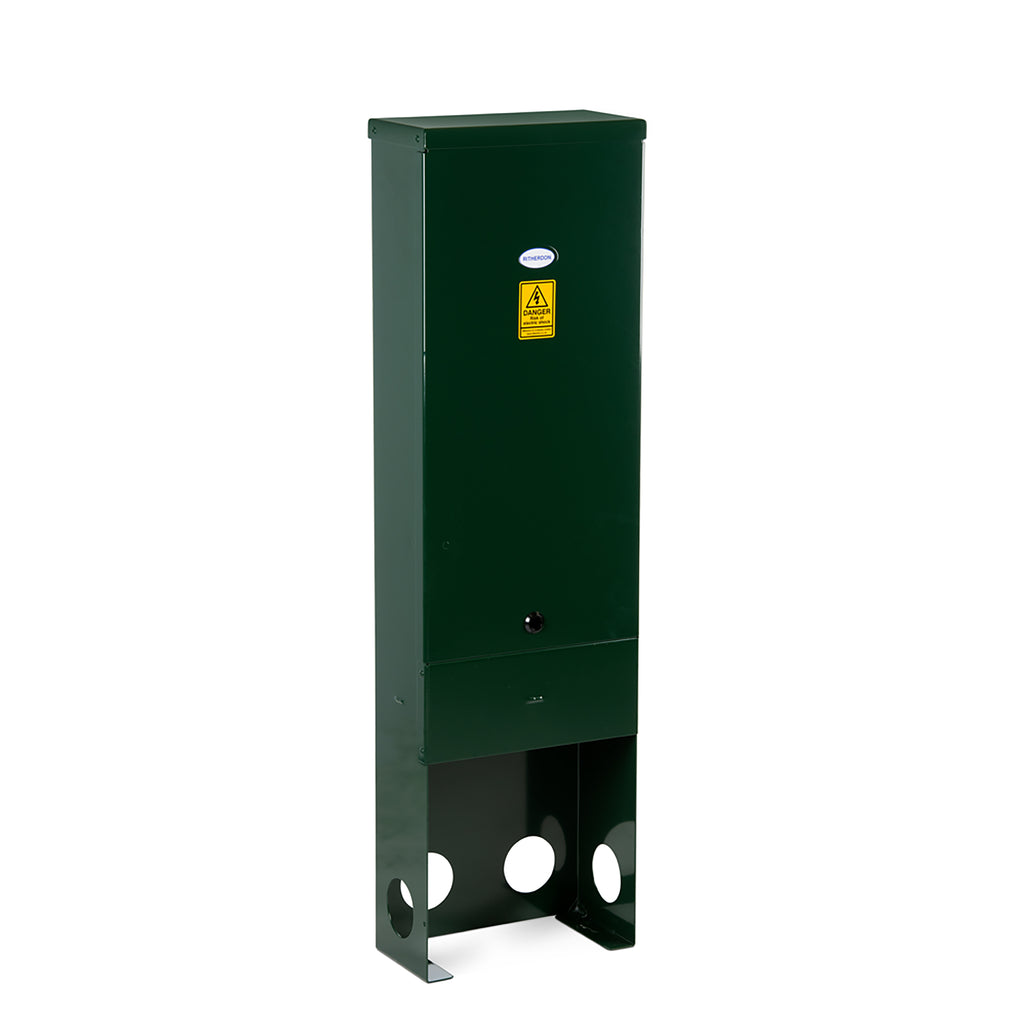

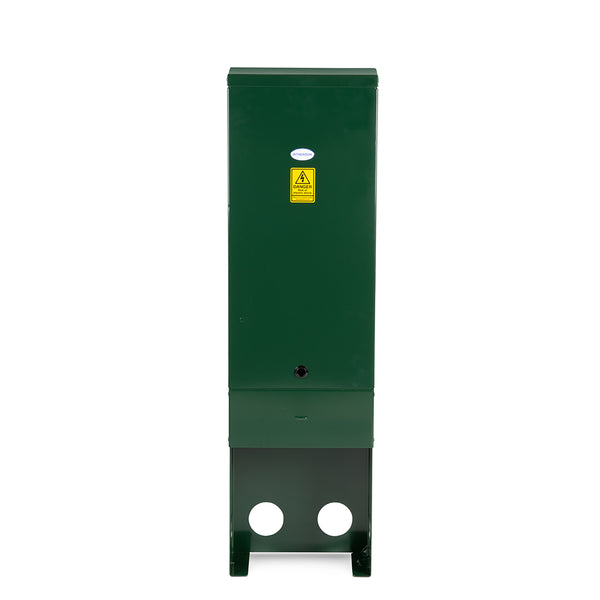

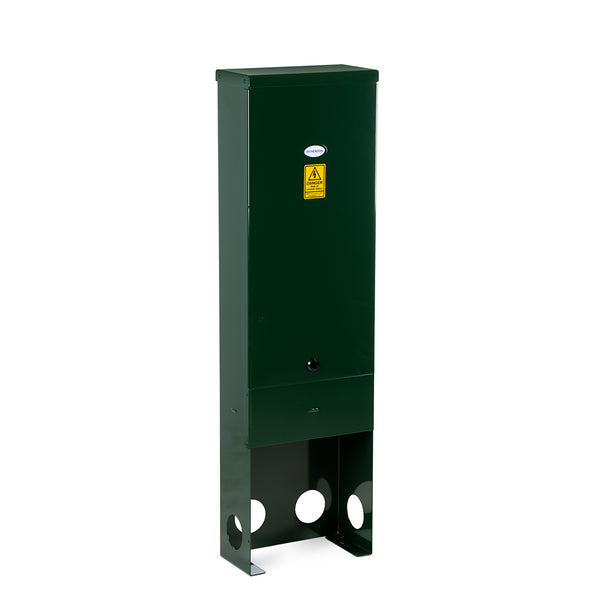

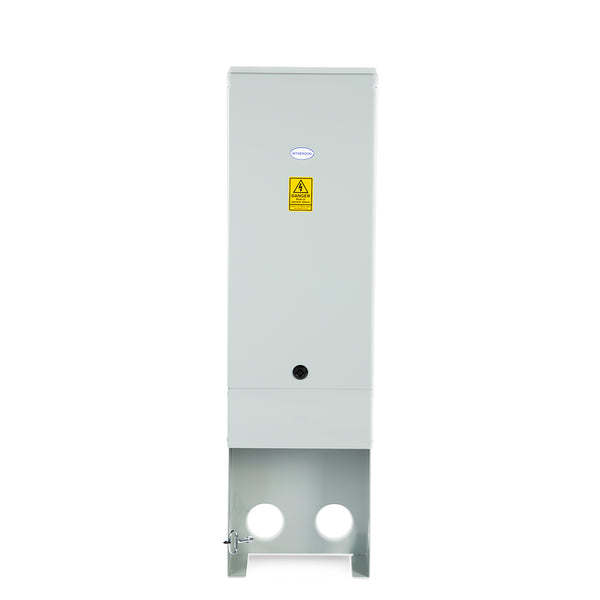

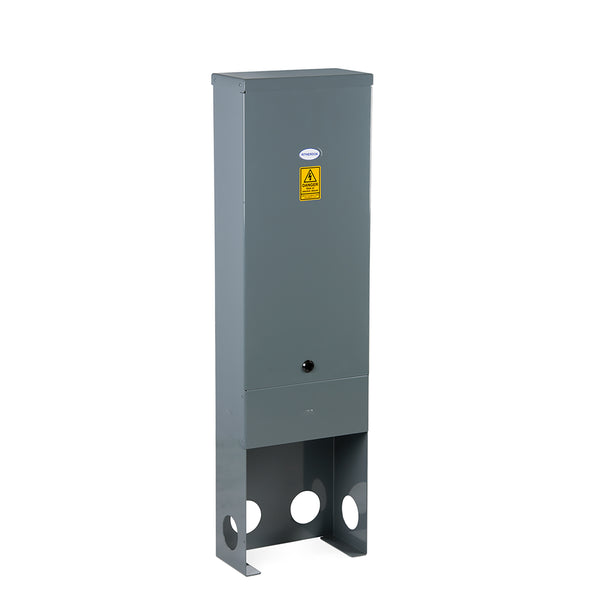

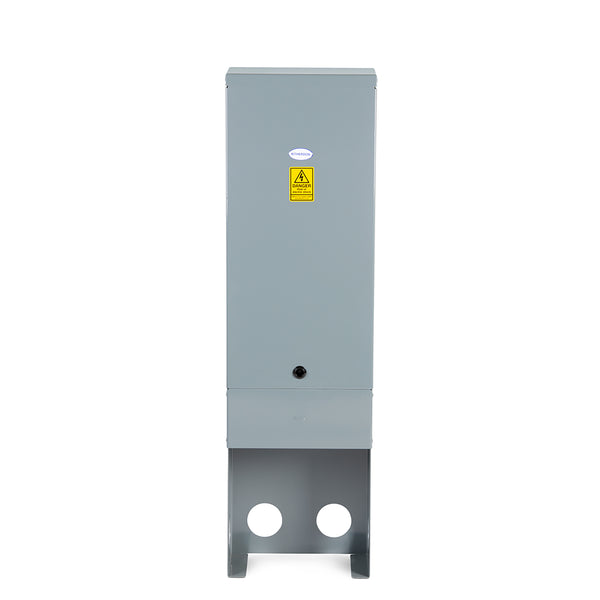

The Ritherdon service/feeder pillar is designed with an integral root and body and a detachable door. To ensure a long service life the complete unit is manufactured from 2.0 mm thick stainless steel as standard.
4003 Grade Powder Coated & 304 Natural are suitable for inland locations.
304 Grade Powder Coated* & 316 Natural are suitable for coastal locations.
*To order 304 Grade Powder Coated, select 304 Natural and state colour in 'add a note to your order'.

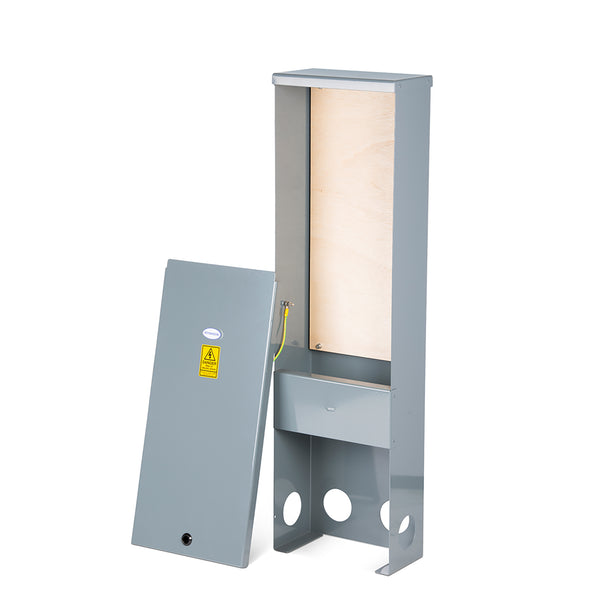

Access for cable ducting is provided through the lower front section of the pillar and duct apertures in the sides and back of the root. An earth cable is provided for bonding the door to the body, with two M6 studs complete with nuts and washers.
(Height x Width x Depth)
(Width x Height)
|R300 Feeder Pillar||1060mm x 300mm x 150mm||280mm x 600mm|
As we manufacture our stainless steel enclosures ourselves, we can easily adapt our feeder pillar designs to whatever dimensions you need. Please email us or call 01254 819100 if you want to discuss custom sizes.
- Tri-key cam-lock (standard)

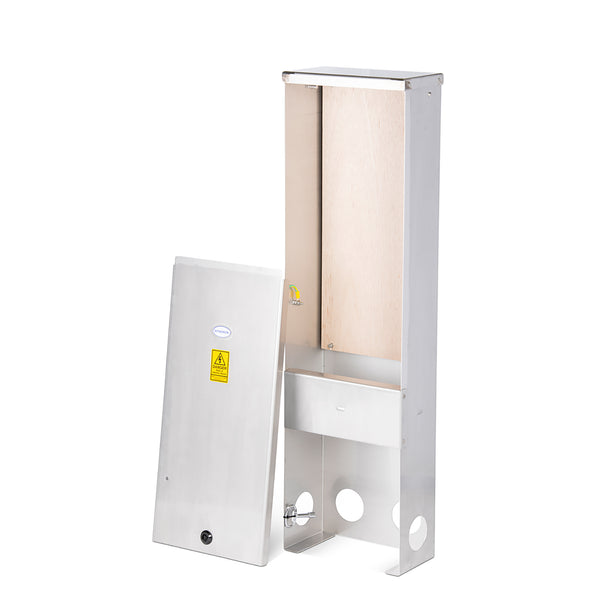

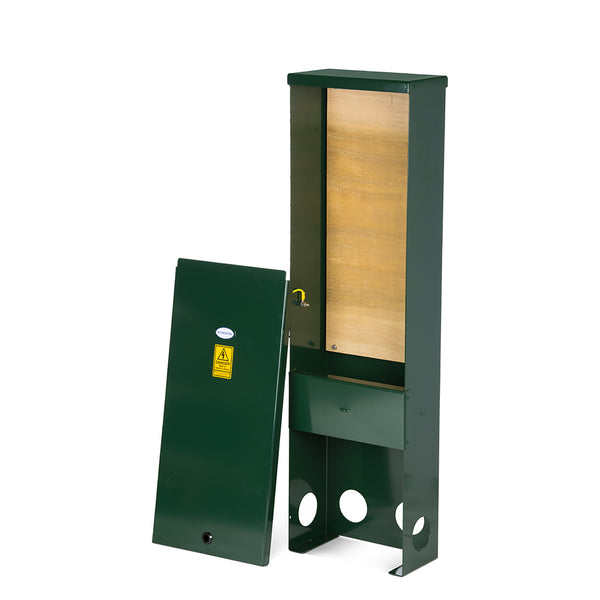

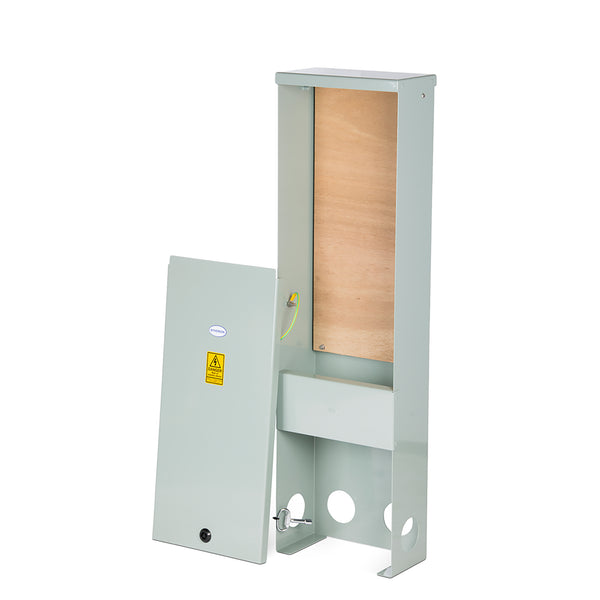

All pillars are supplied with a full width external grade plywood backboard for the fitting of electrical termination equipment. Alternative materials for the backboard can be included on request.
Please contact us to discuss prices for alternative colours (inc. graffiti resistant finish) and other options.
