NH609N Type 609N Cabinet

NH609N Type 609N Cabinet

Regular price Excl VAT £5,801.04

Inc VAT £5,801.04

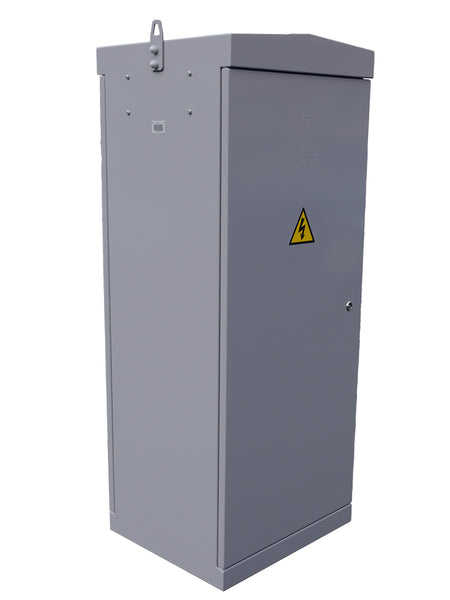

The NH Type 609N Cabinet is designed by Ritherdon to fulfil the specifications required by National Highways for the mounting of motorway communication and third-party equipment on the Strategic Road Network.

The NH 609N is designed, manufactured, and tested according to the National Highways TR 1188 N specification document.

The NH 609N fits the Extended 610 plinth (not supplied), or the NH609 Pedestals (optional)Please add these to cart separately.

PDU option available:

  • Rural PDU – NH Type 609N Rural Power Cabinet: CABINET-0850-1-000

Product Documentation

Standard Material, Colour, and Lock:

  • 4003 Grade: Suitable for inland locations.
  • TR2180 BS4800 00-A-09 ‘Flint Grey’.
  • Concentric Cam-Lock with three-point locking system operated by an National Highways supplied T-key on each door. Keys not included.

National Highways enclosures are supplied without keys as standard.  Please contact your Scheme Designer for further information and supply details.

    Product Data

    Product Code Product Dimensions
    (h x w x d, mm)
    Backboard
    (mm)

    Rack  Space

    (mm)

    Weight
    (kg)
    NH609N
    1597 x 640 x 560 1166 x 540 25U 103



    Product Features

    • 25U 19" Rack – For the mounting of communications and roadside equipment, up to 50kg. 24U available to use, 1U taken up by NRTS power bar.
    • IP56 Rating – The NH609N is protected against dust ingress powerful water jets according to BS EN 60529:1992 + A2:2013
    • 15mm Thick Backboard – WBP plywood backboard (EN314.2 Class 2)
    • Available in BS4800 00-A-09 ‘Flint Grey’, 4003 Grade Stainless Steel construction.

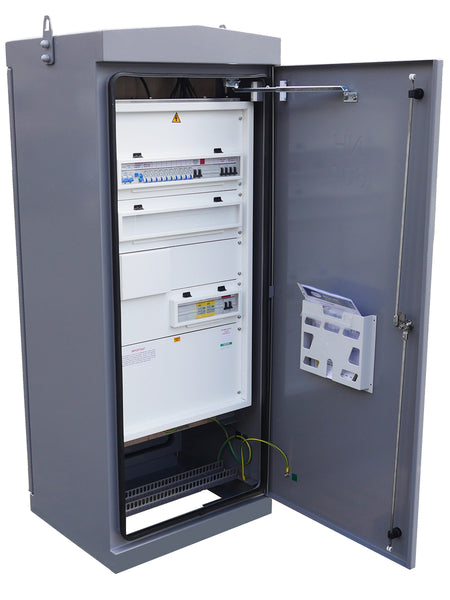

    • Rural or Gantry PDU Option:
      • TSP Socket Strip x1 – BS 1363 6-way 13 A socket strips.
      • Rack Power Cables x8 - 3-core 0.75 mm2 flexible cords fitted with ICE 60320 C13 cable sockets located in the Equipment Bay.
      • MET – Main Earth Terminal located in the PDU side.
      • Surge Protection - Type 1, 2 & 3 surge protection fitted.
      • Hinged viewing covers on circuits within the PDU.
      • PDU Cable entry – 3x 32.0mm, 9x 25.0mm, 18x 20.0mm diameter holes fitted with blanks located in PDU.
      • 13A Maintenance socket mounted on the 19"rack on equipment side.

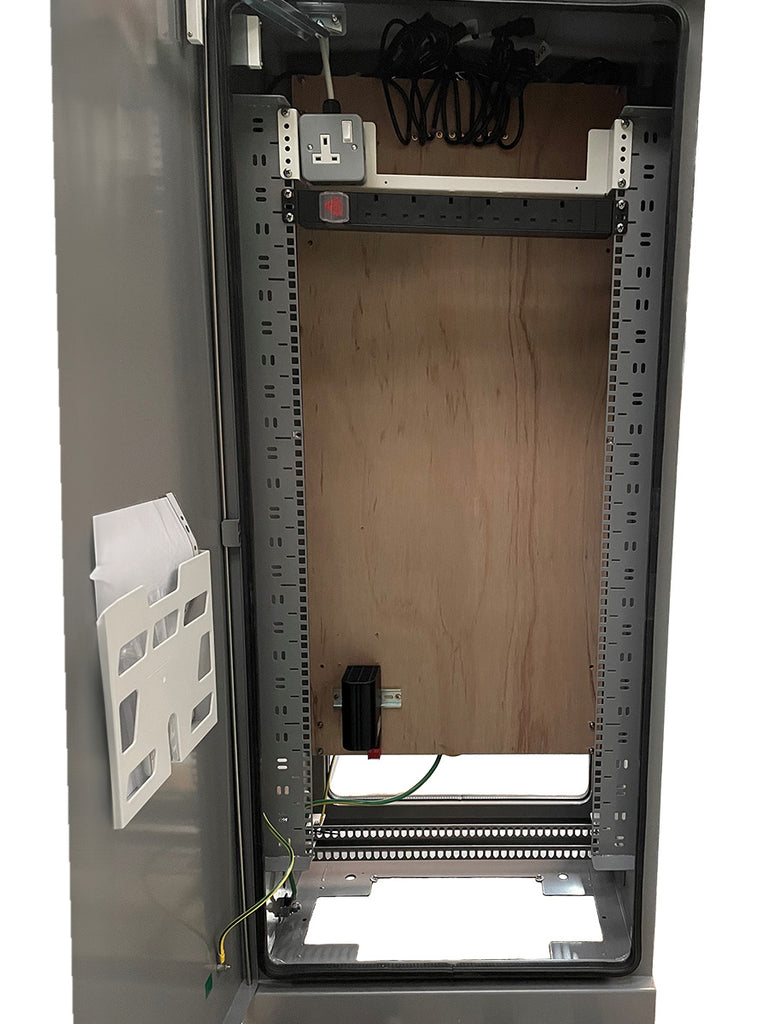

    • Optional Cabinet Heater – Stego touch safe heater (positioned at the bottom of the cabinet, see inside image).
    • Optional Pedestals – Placed between cabinet and plinth/chamber to prevent moisture ingress.
    • Secure Locking System – Three-point locking on each door operated using an NH-Supplied T-key.
    • The NH Cabinets are supplied with a three-point locking system operated with a removable ‘T’ key. National Highways enclosures are supplied without keys as standard.  Please contact your Scheme Designer for further information and supply details.
    • Lifting Lugs – All units are supplied with detachable lifting lugs with 438 kg maximum load.
    • Cable Entry – Opening at the base for cable entry or duct stubs.

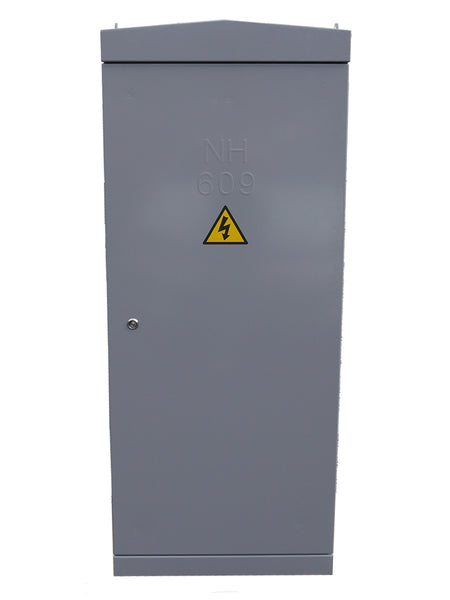

    • Two 90° Doors – One on each side, allows for easy convenient access to equipment inside.
    • Horizontal Termination Rails x2 – Under the PDU for the termination and earthing of SWA cables.
    • Ritherdon Guarantee – All metalwork is guaranteed for 25 years.


    Further Help

    The NH Cabinets are supplied with a three-point locking system operated with a removable ‘T’ key. National Highways enclosures are supplied without keys as standard.  Please contact your Scheme Designer for further information and supply details.

    We would be happy to discuss your requirements for National Highways Cabinets or any other highways project. Please email us or call 01254 819100 to talk about any other Cabinets from the NH Approved Range or from the rest of Ritherdon's product ranges.

    Still don't know whether this unit is suitable for you? Please see this guide, which includes a table with dimensions of all our cabinet and feeder pillar products.

    To find out more about the TR official documents, visit the Traffic Systems and Signing (TSS) Plans Registry to access the register of statutory approvals for traffic control equipment.

    For further information on all Designs, standards and specifications please refer to National Highways.
