National Highways Roadside Electrical Cabinet (NHREC) & Plinth
Inc VAT £1,127.04
A Roadside Electrical Cabinet for housing motorways communications equipment, or any other electrical equipment, for use on the motorways and highways of the Strategic Road Network (SRN) managed by National Highways.
The National Highways Roadside Electrical Cabinet (NHREC) range previously known as the NH RB range consists of standard Ritherdon RB Cabinets that have been manufactured and tested according to the requirements and standards detailed MCE 2650, including TR 1100, TR 2130 and TR 2180.
National Highways Product Acceptance Certificate No. PAC/0037/1/2022/05/10.
The NHREC Cabinet is supplied with its corresponding Plinth as standard, onto which the unit can be mounted. The plinth is buried in concrete, providing a secure point of installation.
National Highways enclosures are supplied without keys as standard. Please contact your Scheme Designer for further information and supply details.
Click here to see a table with dimensions of all our cabinet and feeder pillar products.
Product Documentation
Standard Material, Colour and Lock:
- 4003 Grade: Suitable for inland locations.
- TR2180 Traffic Grey A – BS4800 00-A-09 ‘Flint Grey’
- Concentric Cam-Lock with three-point locking mechanism (Standard). Keys not included.
National Highways enclosures are supplied without keys as standard. Please contact your Scheme Designer for further information and supply details.
Product Data
| Product Code |
Product Dimensions (h x w x d, mm) |
Backboard (h x w, mm) |
Doors |

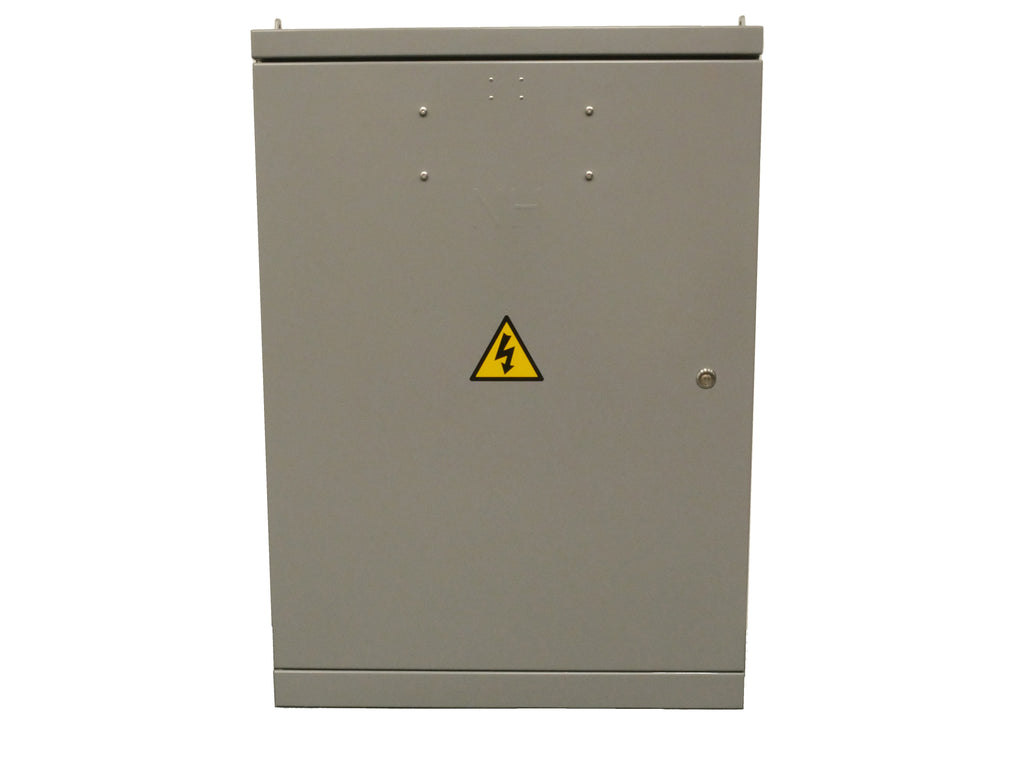

| NHREC800 | 1125 x 800 x 380 | 930 x 745 | Single |

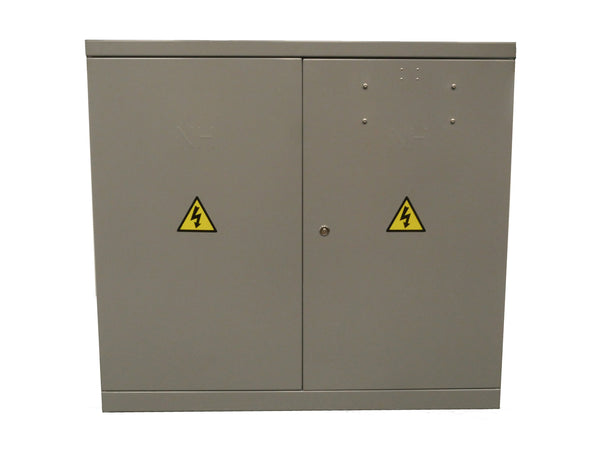

| NHREC1250 | 1125 x 1250 x 430 | 930 x 1195 | Double |
*Height above ground after installation onto corresponding plinth is 1175mm.
Product Features
- IP56 Rating – protected against dust and powerful water jets according to BS EN 60529.
- IK10 Rating – Can withstand impact energy 20J according to IEC 62262.
- Door Stays – All doors are equipped with locking door stays to facilitate maintenance.
- Cable Entry – All models are open at the bottom for cable entry. Must be sealed as per instructions.
- 180° Door Opening – Allows for convenient and unobstructed access to equipment inside.
- 2° Sloped Roof - The cabinet roof is sloped down at 2 degrees away from the door.
- Backboard – 12 mm WBP plywood backboard (EN314.2 Class 2) for mounting equipment.
- Lifting Lugs – All models supplied with detachable lifting lugs.
- Ritherdon Guarantee – All metalwork is guaranteed for 25 years
- Plinth – Can be installed on a plinth (350mm total height, buried 50mm above ground) or a suitable concrete base at the discretion of National Highways.
- Optional Extras – Includes: Shelving, 19-inch rack, Heater Kit, Light Kit, 6-Way Consumer Unit, Double 13A socket. National Highways part numbers can be found under NH Accessories. Please add to cart separately.
Further Help
National Highways enclosures are supplied without keys as standard. Please contact your Scheme Designer for further information and supply details.
We would be happy to discuss your requirements for National Highways Cabinets or any other highways project. Please email us or call 01254 819100 to talk about any other Cabinets from the NH Approved Range or from the rest of Ritherdon's product ranges.
Still don't know whether this unit is suitable for you? Please see this guide, which includes a table with dimensions of all our cabinet and feeder pillar products.
To find out more about these MCE and TR official documents, visit the Traffic Systems and Signing (TSS) Plans Registry to access the register of statutory approvals for traffic control equipment.
For further information on all Designs, standards and specifications please refer to National Highways.
