RMC2100 Large Stainless Steel Enclosure 2000x2100x800 (HWD)

RMC2100 Cabinet & Plinth

Regular price Excl VAT £4,041.71

Inc VAT £4,041.71

The Ritherdon Modular Cabinet is a floor standing enclosure designed and manufactured to modular construction. It is a multipurpose enclosure, with a variety of applications and is being used in many different industries. To ensure a long service life the complete unit is manufactured from 2.0 mm thick stainless steel with a powder coated finish.

Please check the measurements of this enclosure to ensure these sizes are suitable for the project in hand as returns charges will apply.

New Depth Option

Comes in two depths 800mm and a new depth of 950mm.

All RMC Cabinets must be installed with supplied plinth or the warranty is void.

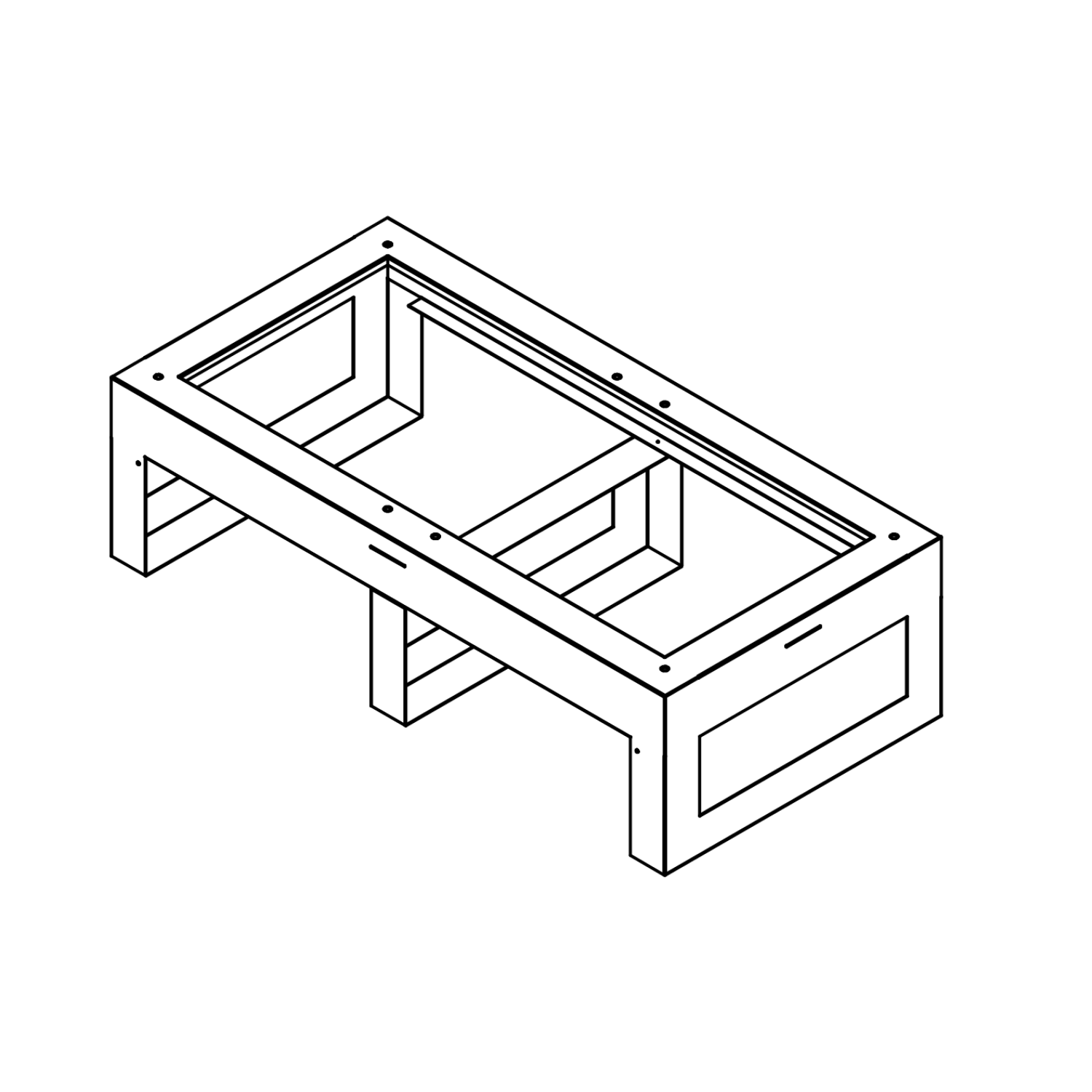

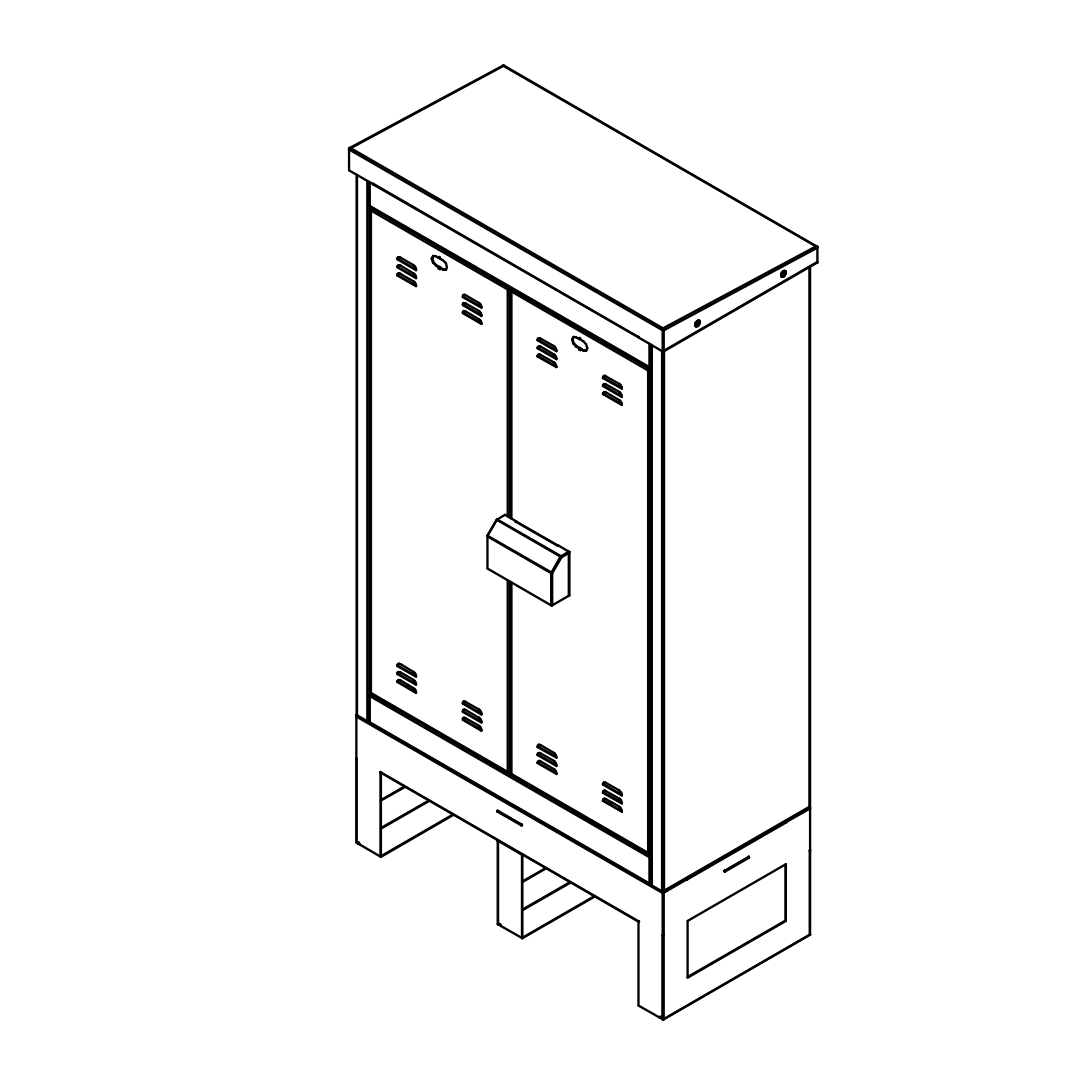

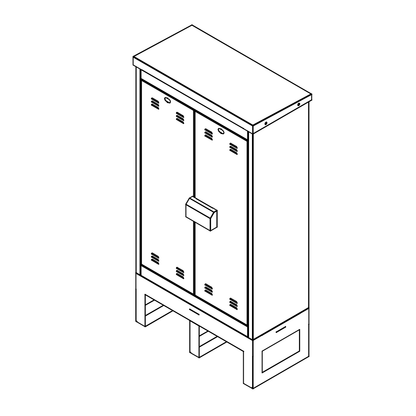

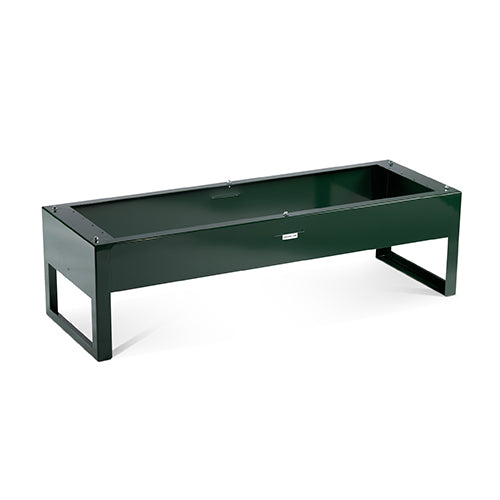

Each RMC Cabinet is sold with a corresponding plinth (450mm height) onto which the unit can be mounted. The plinth is buried in concrete, providing a secure point of installation.

Click here to see a table with dimensions of all our cabinet and feeder pillar products.

Delivery Information:

We will send these on a designated AM Delivery between 9:00am & 12:30pm as standard unless otherwise requested.

Please check the measurements of this enclosure to ensure these sizes are suitable for the project in hand as returns charges will apply.

These enclosures will require a forklift to offload from the carrier at the delivery point.

Product Documentation:

Material Options

  • 4003 Grade: Suitable for inland locations
  • 304 Grade: Suitable for inland & coastal (<1 mile from coastline)
  • 316 Grade: Suitable for coastline locations

See here for more detail

Colour Options

  • RAL 9005 Black Gloss
  • BS4800 14C40 Dark Green Gloss
  • BS381C 631 Light Grey Gloss
  • BS381C 632 Dark Grey Gloss

    Product Data

    Product Code Product Dimensions
    (h x w x d, mm)
    Backboard
    (h x w, mm)
    Working Depth
    (mm)

    Weight

    (kg)

    RMC2100 (800)
    2000 x 2100 x 800 1770 x 2002
    750
    430
    RMC2100 (950) 2000 x 2100 x 950 1770 x 2002 900 490

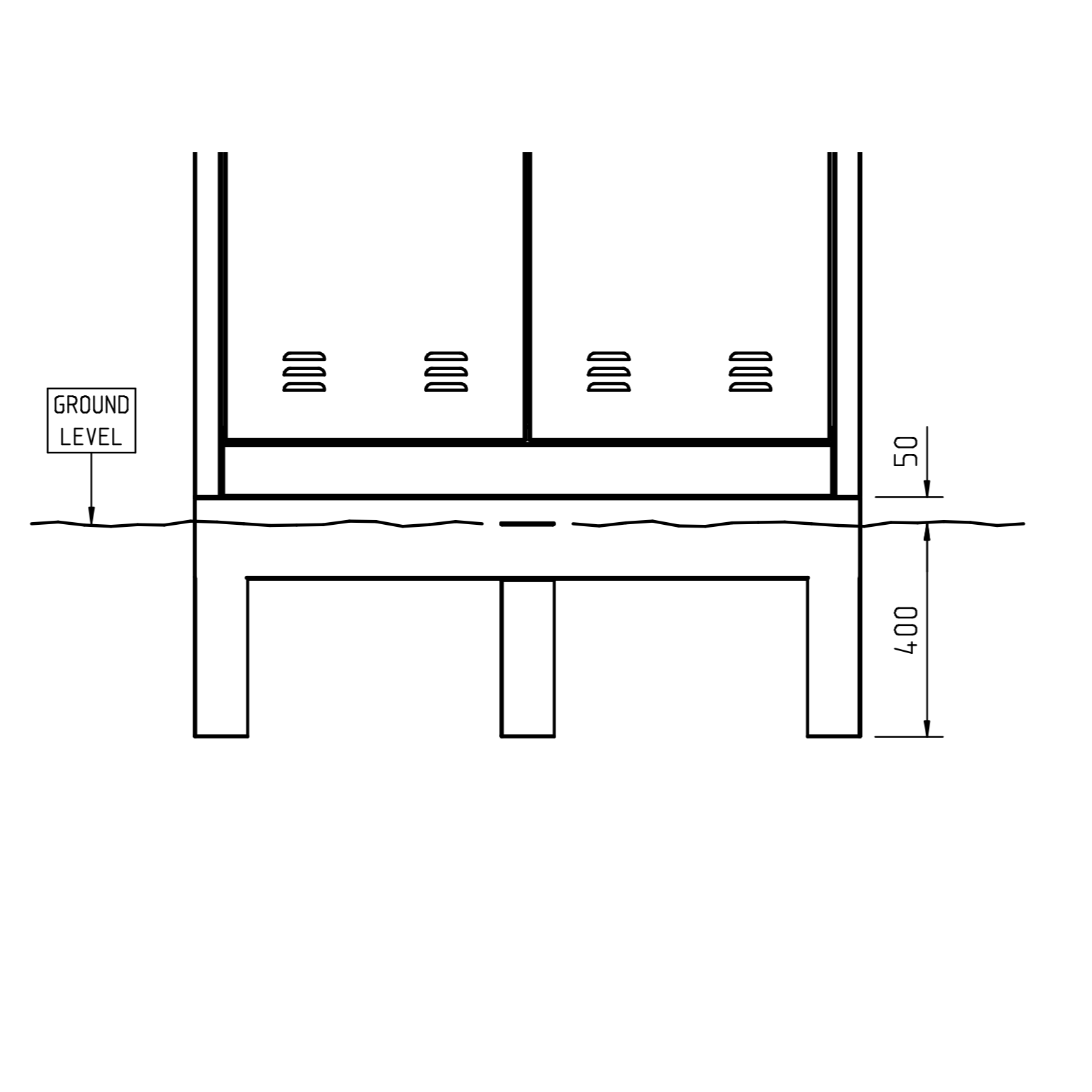

    *Height above ground after installation onto corresponding plinth is 2050mm.

    Product Features

    • Smooth polyester powder coated finish.
    • Single 18mm External Grade Plywood Backboard.
    • IP24 rating with ventilation louvres, IP46 rating without ventilation louvres.
    • Three-point locking system with L handle, padlockable (10mm shackle) and shroud. Padlock not included.
    • Strong, spring-loaded bolts to hold the doors in place.

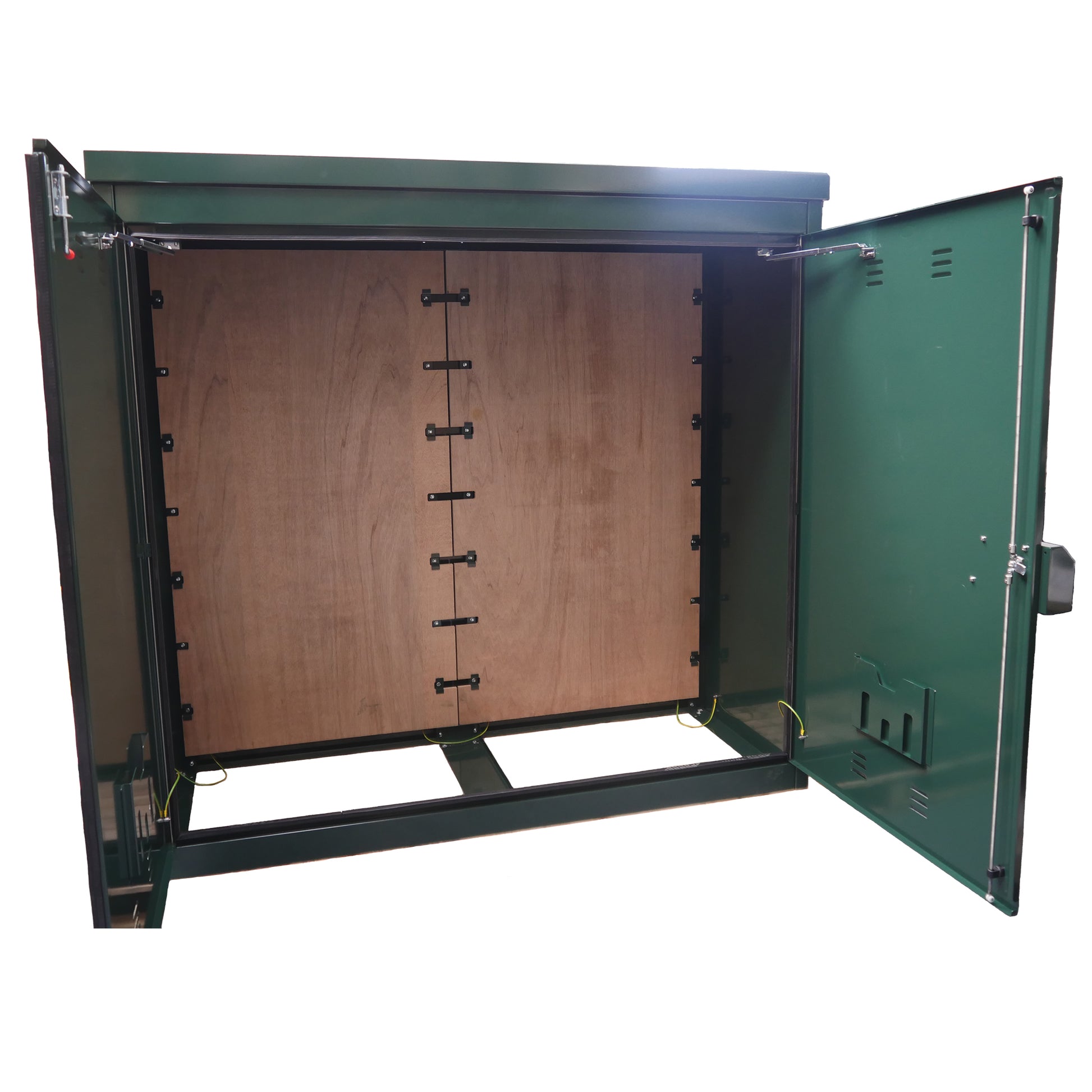

    • The RMC has no internal separation, allowing plenty of space for your electrical equipment.
    • 2° roof slope to back of cabinet as standard, peaked roof available if required.
    • Earthing studs fitted to both body and door.
    • Fully sealed door aperture.
    • Ventilated via louvres on the doors (optional).
    • Fitted with door stays.
    • A4 document pocket.

    Included for this enclosure:

    The RMC2100 Cabinet is sold with its corresponding plinth.

    All Modular Cabinets must be installed with supplied plinth or warranty is void.


      Contact us if you require different colour, lock or accessory options.

        Still don't know whether this unit is suitable for you? Please see this guide, which includes a table with dimensions of all our cabinet and feeder pillar products.
