CT - 200 amp Metering Class Current Transformers
Inc VAT £234.00
Delivery on CTs (Current Transformers) is 3 working days. We always work to despatch orders sooner if we can.

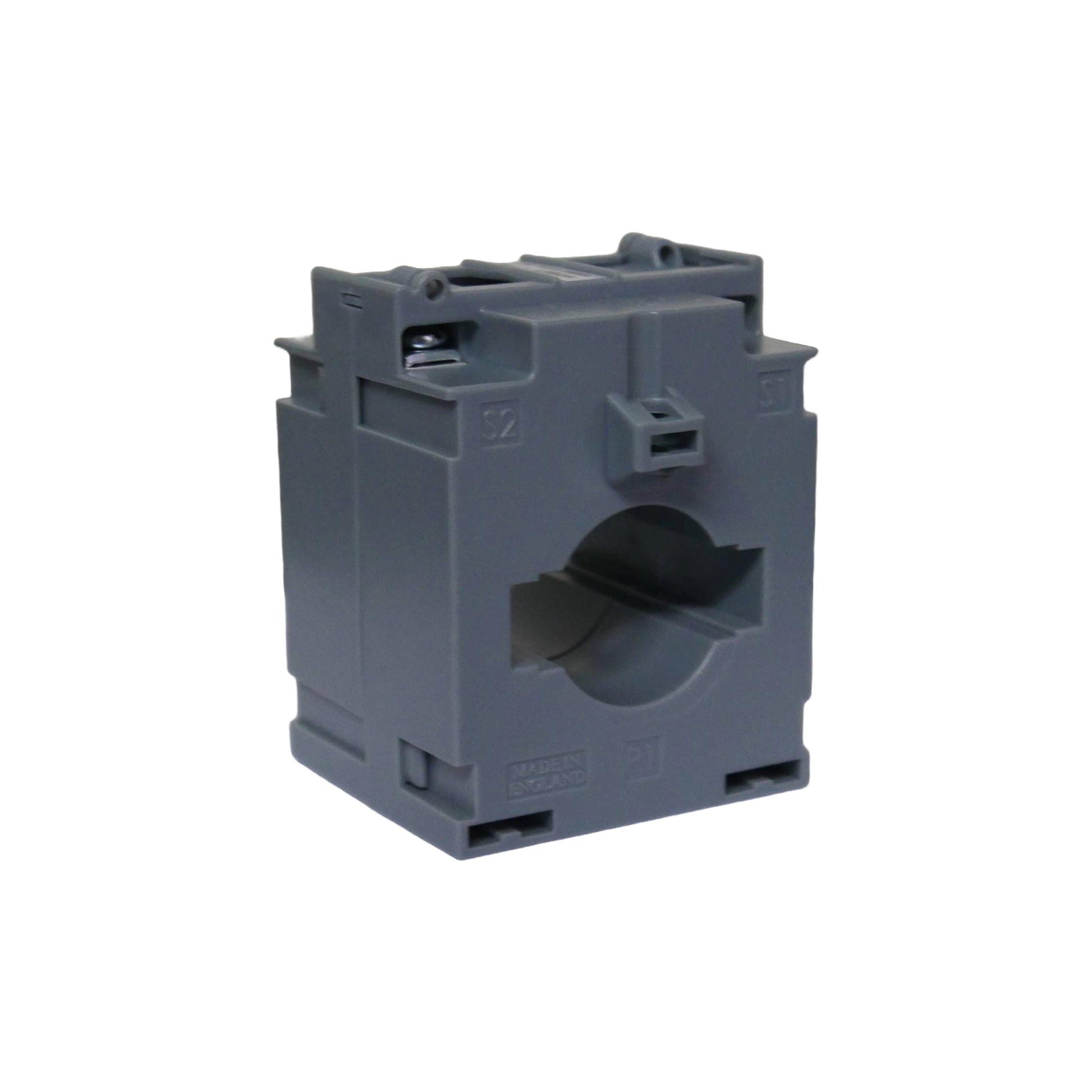

Set of three 200:5 ratio metering class current transformers (CTs), rated 200 Amps to fit into the Ritherdon CT Chamber including individual test certificates.
The maximum cable diameter is 24mm2 and the maximum busbar size is 40mm x 10mm.
Available 0.5s metering class.
The 0.5s class measures more accurately between 1% and 100% of the rated power.
Product Description
Current transformers are vital components in electrical systems, designed to measure and monitor electrical currents. They play a crucial role in protecting equipment, ensuring safety, and enabling efficient energy management.
Our Moulded Case Current Transformers are designed with a protective housing, which provides insulation and safeguards against external environmental factors. They are compact and provide excellent mechanical protection.
We offer 600/5, 400/5 and 200/5 in 0.5s class. The 0.5s class measures more accurately between 1% and 100% of the rated power.
The maximum cable diameter is 24mm2 and the maximum busbar size is 40mm x 10mm.
