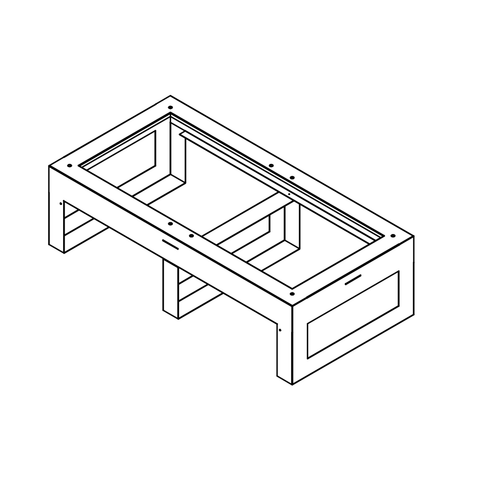

RMC Plinth base line drawing

Plinth for RMC1600

Regular price Excl VAT £432.16

Inc VAT £518.59

The RMC Plinth is a root section for RMC cabinets. The plinth is a root or base that is used to install the cabinet into the ground. All Modular Cabinets must be installed with supplied plinth or warranty is void.

The plinth needs to match the corresponding RMC1600 Cabinet and be made from the same grade of stainless steel.

4003 Grade Powder Coated & 304 Natural are suitable for inland locations.

304 Grade Powder Coated* & 316 Natural are suitable for coastal locations.

The plinth comes with a marked 'bury to line' and when installed correctly will protrude from the ground 50mm.  Please choose from our 4 standard colours to match your cabinet's colour.

 RMC1600 Plinth Dimensions

Plinth

Width

mm

Depth

mm

Max. Height*

mm

Plinth

Openings**

mm

Weight

Kg

RMC1600 1600 800 450* 650 x 600** 40
*Height up to 'Bury to Line' - the plinth is 400mm high.
**There are two openings side by side.



All Modular Cabinets must be installed with supplied plinth or warranty is void.

See the corresponding RMC1600 Cabinet
