BT Terminal Interface Pillar

BT Terminal Interface Pillar

Regular price Excl VAT £172.57
Inc VAT £207.08
Minimum Qty Maximum Qty Price
1 3 £172.57
4 20 £167.39
21 49 £162.22
50 + £158.76

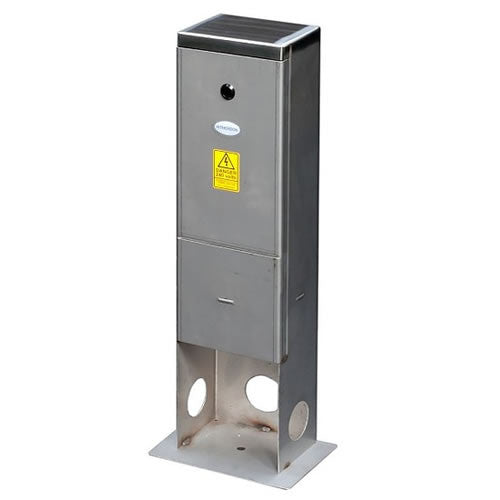

The Ritherdon BT terminal interface pillar is designed for housing remote monitoring equipment safely away from the signal controller.

It is an ideal solution to allow telecommunications engineers to test their equipment without entering the signal controller cabinet. Two different heights of pillar are available.

The unit is designed and manufactured to withstand moderate forced entry, and to ensure a long service life the pillars are manufactured from 2mm thick stainless steel.

They can either be left in their natural state or polyester powder coated, with a choice of standard colours included in the price; other colours, including an anti-graffiti finish, are available on request.

Access for cable ducting is provided through the lower front section of the pillar. A length of wire provides earth bonding of the door to the body using M6 studs complete with nuts and washers.

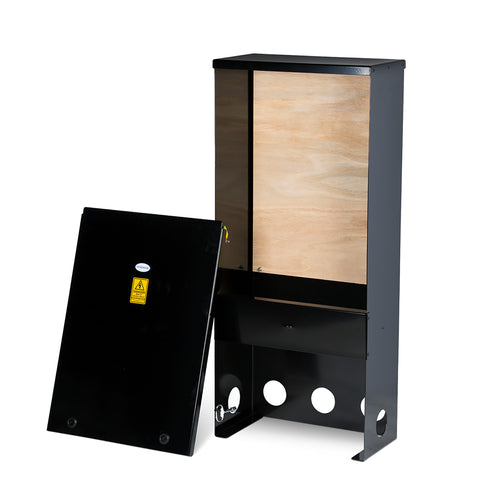

All BT pillars are supplied with a full-width external grade plywood backboard for the fitting of BT termination equipment.

The following types of lock are available:

  • Tri-key camlock
  • Including 1 Key


Designation Overall Dimensions
(Height x Width x Depth)
Base Plate
(Width x Depth)
(Width x Height)
BT PILSM 800mm x 200mm x 150mm 280mm x 140mm 180mm x 400mm
BT PILLRG 950mm x 200mm x 150mm 280mm x 140mm 180mm x 650mm
