R5 Standard Semi-Recessed Electric Meter Box
Inc VAT £215.93

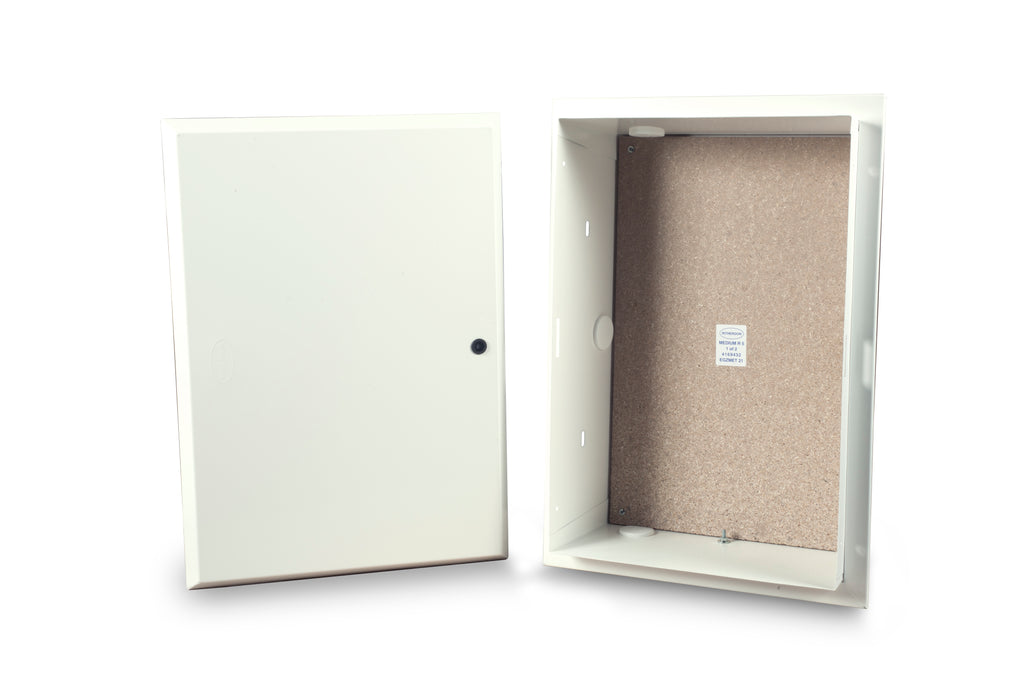

R5 Semi-recessed electric meter box made from zinc coated steel. Available in ESI Small, Medium and Large sizes.
Supplied in two halves allowing fitting of the box during building work and hanging of the door later when there is less chance of site damage. Designed so that the door can be hung on the left or right-hand side of the pre-installed box to best suit local conditions.
Meter board and earthing stud fitted to the box as standard. Cable entry holes fitted with blind grommets to allow choice of positioning. All boxes fitted with stainless steel cam locks and supplied with easy to handle triangular key. Available in ESI Small, Medium and Large sizes.
Product Documentation:
- Data Sheet
- Instruction Sheet
-
R5 Small Technical Drawing
-
R5 Medium Technical Drawing
-
R5 Large Technical Drawing
Product Features:
- Semi Recessed Meter Box for new electric meter installations.
- Electricity warning symbol embossed on the door.
- Can be installed for left-hand or right-hand opening.
- All units fitted with stainless steel cam locks and supplied with a triangular plastic key.
- Powder coated, 1.2 mm Zintec steel.
- Available in RAL 9010 Satin White.
Product Data:
| Size |
Product Dimensions (h x w x d, mm) |
Wall Opening (h x w x d, mm) |
Weight (kg) |
| R5 Small | 582 x 415 x 180 | 530 x 360 x 130 | 9 |
| R5 Medium | 657 x 470 x 180 | 605 x 415 x 130 | 10 |
| R5 Large | 732 x 555 x 180 | 680 x 500 x 130 | 13 |
Fire Rated Version
We also provide a Fire Rated R5 meter box, tested to the European fire resistance test method (BS EN1363 and 1366) which provides 60 minutes fire resistance.
R3 and R5 Low stock Item
We'd like to advise that we tend to keep less stock of R3 and R5 meter boxes. So if out of stock at the time of ordering, it may take up to 3 weeks for your order. Please contact us for a stock check and get a better estimate of lead times before ordering. We'll be happy to help.
