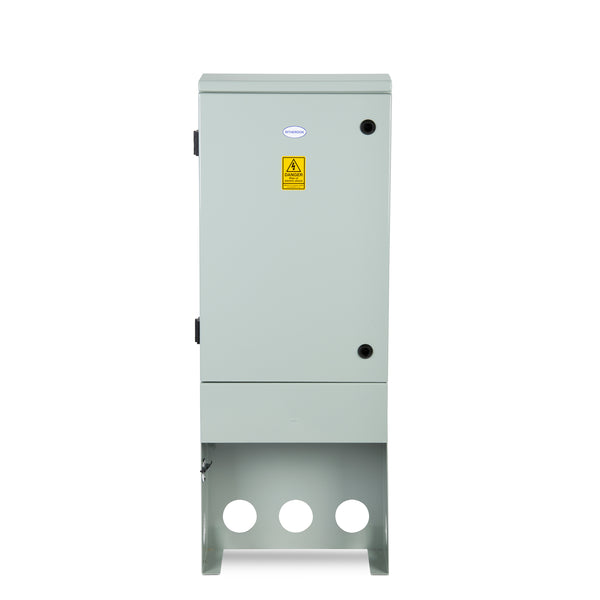

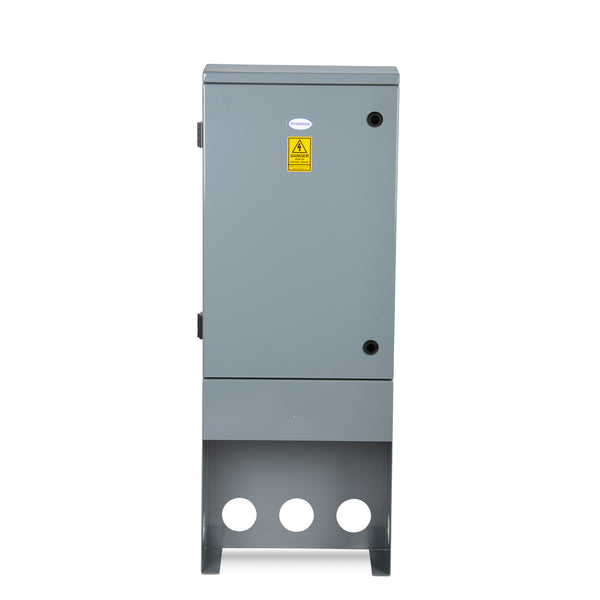

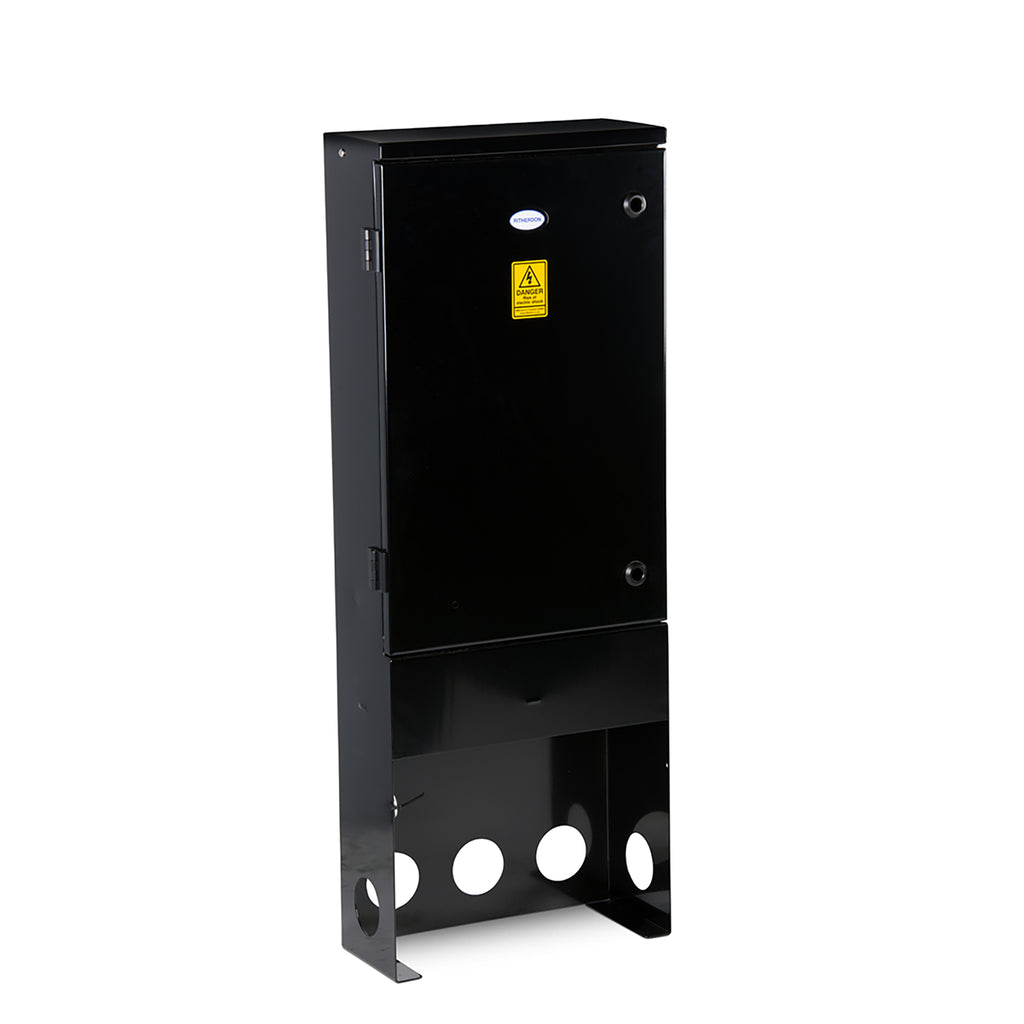

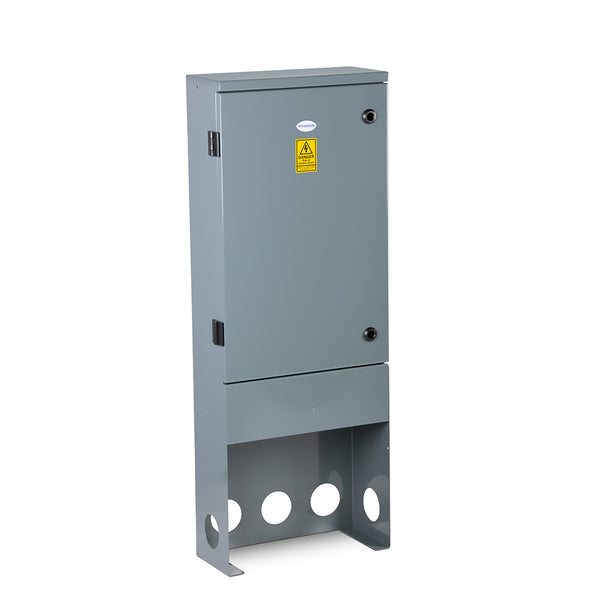

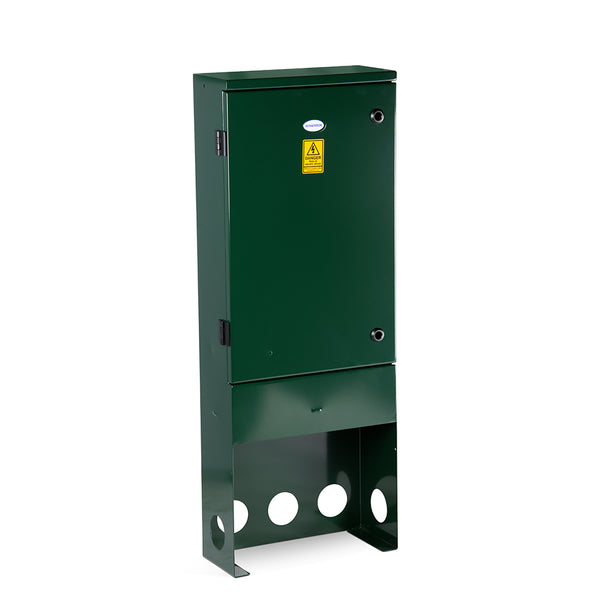

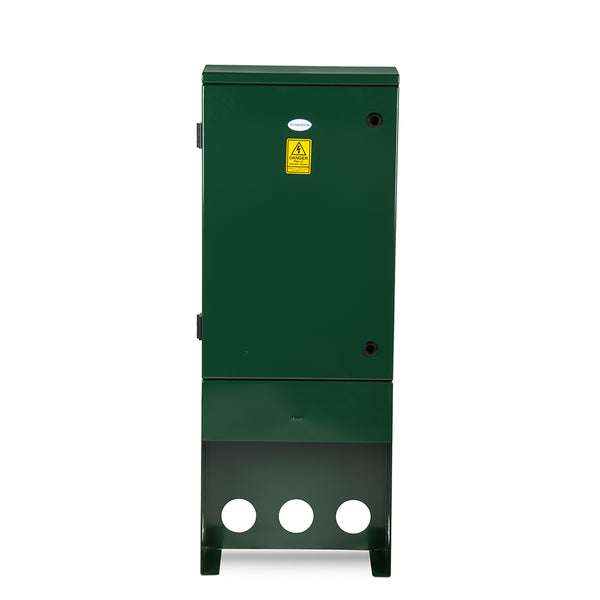

RH400 Hinged Door Feeder Pillar
Inc VAT £284.62

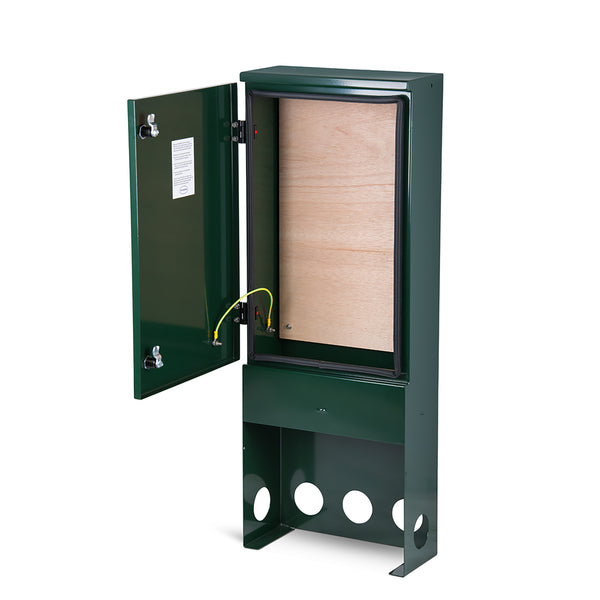

The door on this feeder pillar is flush with the body and attached with a strong stainless steel hinge and has a watertight neoprene gasket.

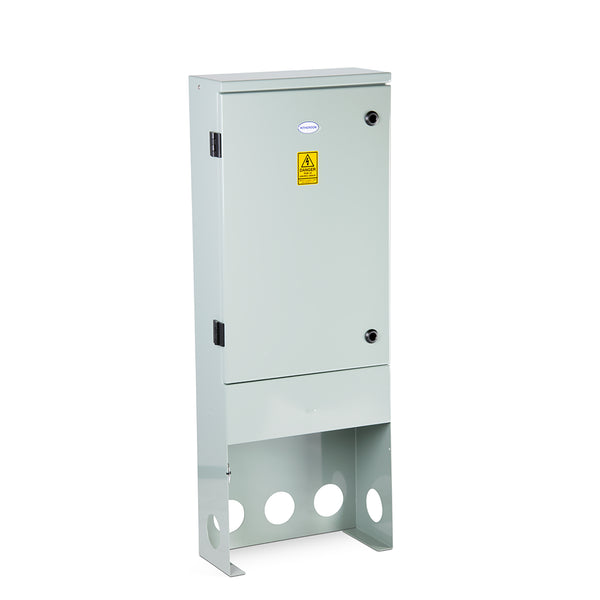

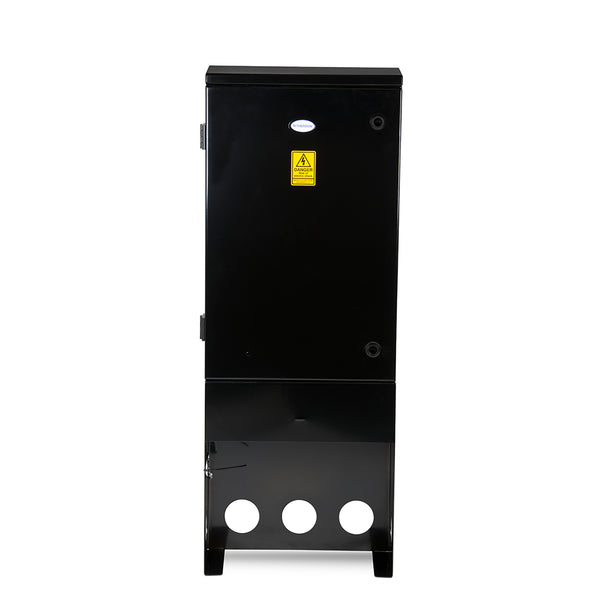

The unit is designed and manufactured to withstand moderate forced entry. To ensure a long service life the pillars are manufactured from 2mm thick stainless steel with a powder coated finish. The standard price covers painting in one of the range of colours below.
Access for cable ducting is provided through the lower front section of the pillar or the root. A length of wire provides earth bonding of the door to the body using M6 studs complete with nuts and washers.

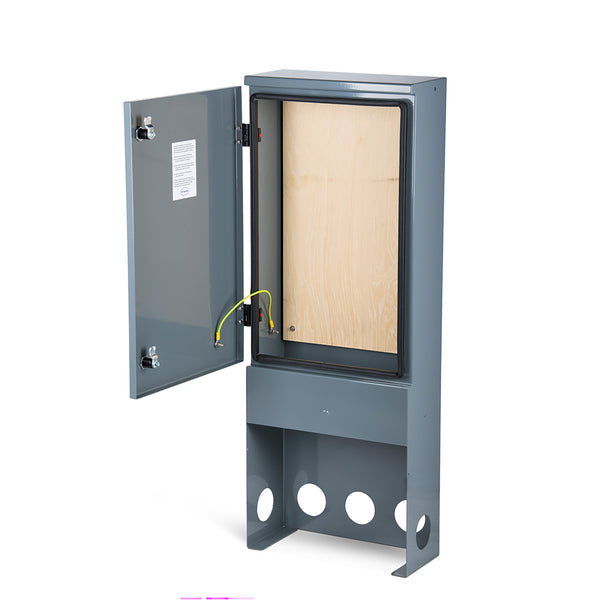

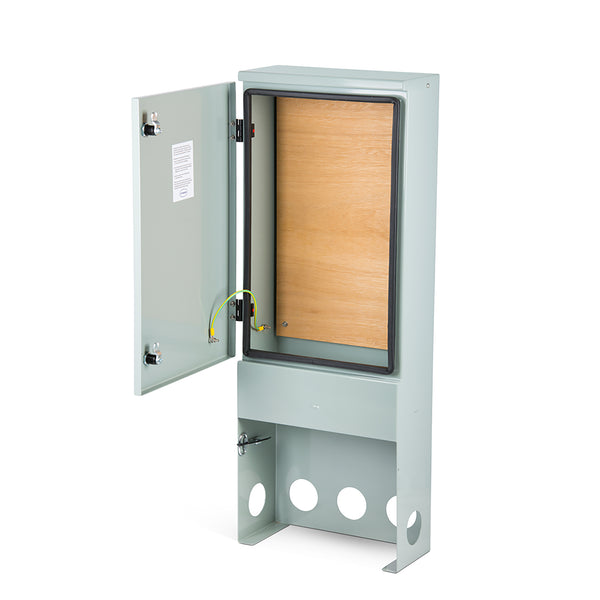

All pillars are supplied with a full-width, external-grade plywood backboard for the fitting of electrical termination equipment. We are also able to supply and assemble any internal electrical equipment that may be required.
|Hinged Pillar Size||
(Height x Width x Depth)
(Width x Height)
|RH400||1060mm x 400mm x 170mm||380mm x 580mm|
As we manufacture our own stainless steel enclosures ourselves, we can adapt our feeder pillar designs to the dimensions you need. Please email us or call 01254 819100 if you want to discuss custom sizes.
