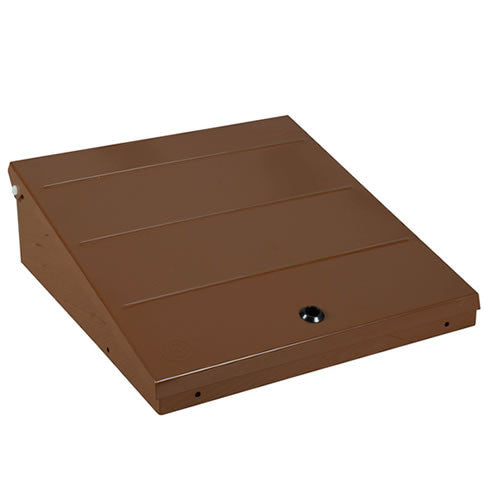

Repair Semi-concealed gas meter box (Hepworth) R24H Lid and Frame

R24 Replacement Floor Mounted Semi Concealed Gas Boxes

Regular price Excl VAT £58.16

Inc VAT £58.16

Minimum Qty Maximum Qty Price Excl VAT
1 3 £136.34
4 20 £127.48
21 49 £121.34
50 + £115.89

Floor mounted (aka semi-concealed or semi-buried or ground meter box) gas meter boxes are particularly susceptible to damage as they can be stepped on or have things dropped on them. The sharp edges of a broken GRP box at ground level are also a notable hazard.

Previously Ritherdon only manufactured and supplied replacement lids for this type of gas meter box. However, we now have three options for repairing them:

  1. Replacement lids – the R24M and R24H lids for repairing Mitras boxes and Hepworth boxes respectively.
  2. Replacement lid and frame units if the damage is too great simply to replace the lid and, again, there are units for Mitras and Hepworth boxes.
  3. Replacement lid and body units for pre-payment meter boxes.

Like the rest of the Ritherdon range, the R24 units greatly increase the longevity and security of the GRP meter box that they repair. The R24 units are also powder coated brown (note the colour rendition in the photos isn’t perfect), so that they match the plastic boxes.

Unsure of how to measure your damaged meter box? See how to measure here or click here to view our selection guide.

Product Documentation:

Product Features:

  • Can be bought lid-only or together with the frame.
  • Frame covers damaged floor mounted meter boxes, lid replaces damaged lids.
  • Supplied with optional support plate for the gas pipe.
  • Gas warning symbol embossed on the door.
  • All units fitted with cam locks and supplied with a triangular plastic key.
  • Powder coated, 1.2 mm stainless steel.
  • Available in RAL 8007 Brown.

How to install:

As with the rest of the range, fitting the R24s is very easy. An R24 lid fits the meter box in the same way as the original plastic lid and the lid and frame units fasten through the plastic box with a screw and nut. All the necessary fittings are supplied and units are fitted with a cam lock.

See How to Repair a Meter Box for an instructional video on repairing a semi-concealed gas meter box with an R24 unit.

Product Data:

Product Code Product Dimensions
  (w x d, mm)**
Weight
(kg)
R24M Lid 473 x 341 2
R24H Lid 413 x 438 2
R24M Lid and Frame 466 x 331 4
R24H Lid and Frame 406 x 421 5

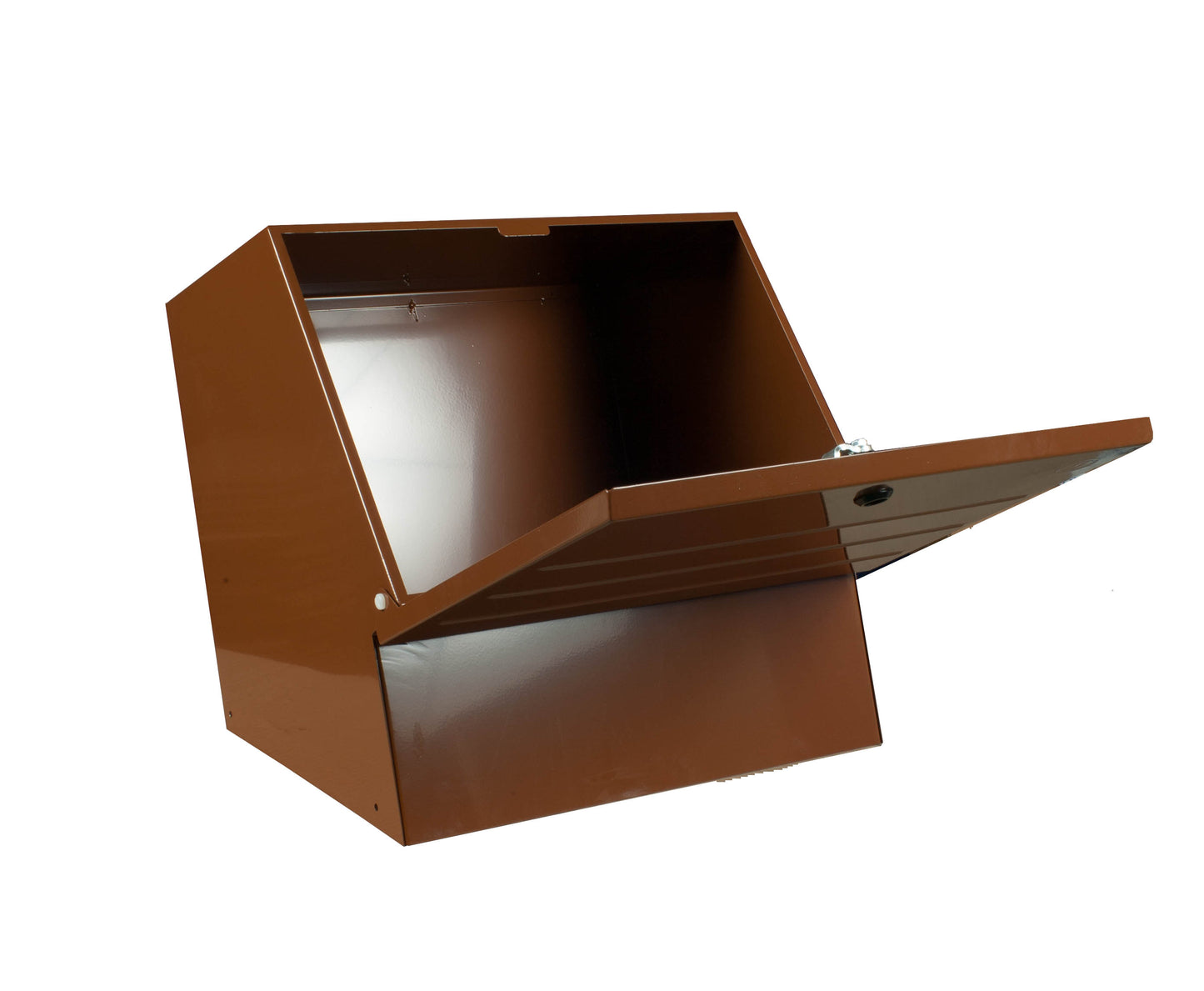

R24M Tall Lid and Frame 466 x 400 x 500(h) 7

*Please note that to fix to your meter box, the dimensions must be no more than 20mm larger than your current meter box.

**Width refers to the distance from left-to-right, depth refers to the distance from front-to-back, and height refers to the distance from top-to-bottom.
